Запчасти Case IH FARMALL 100C (25.102.AC[10]) - VAR - 337323, 743560 - FRONT AXLE, BEVEL GEAR, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HI-LO (25) - FRONT AXLE SYSTEM

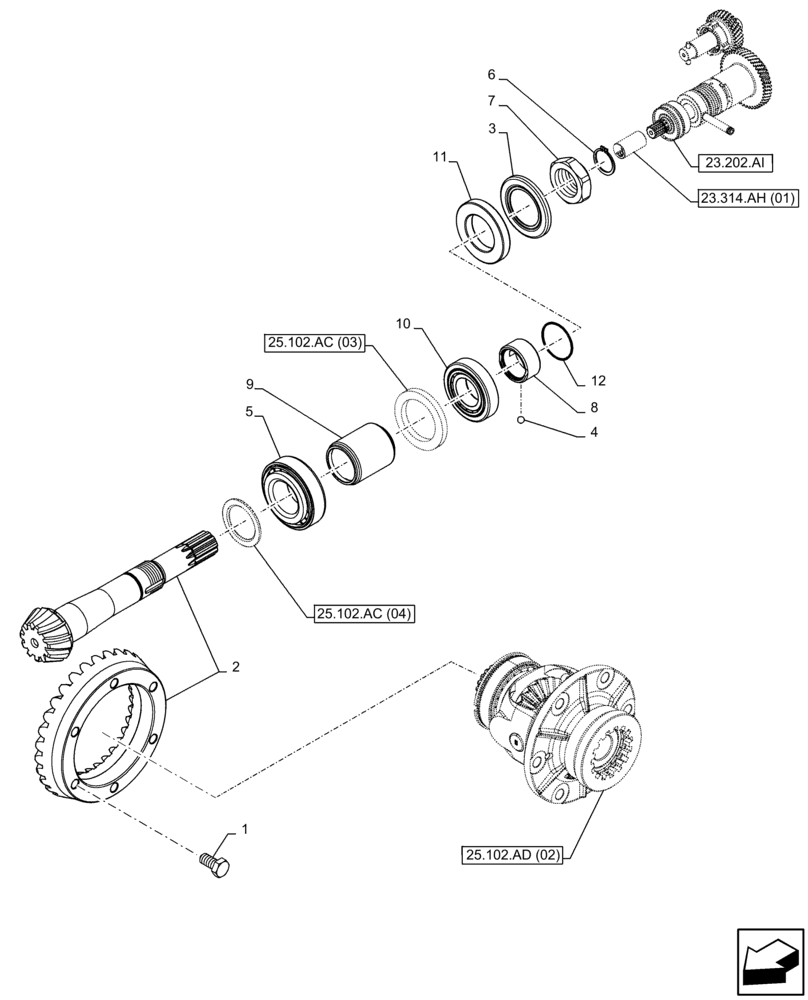

Схема запчастей Case IH FARMALL 100C - (25.102.AC[10]) - VAR - 337323, 743560 - FRONT AXLE, BEVEL GEAR, W/ ELECTROHYDRAULIC ENGAGEMENT, 4WD, HI-LO (25) - FRONT AXLE SYSTEM
12
1
10
7
25.102.ac (03)
2
9
3
23.202.ai
6
5
4
11
25.102.ad (02)
8
23.314.ah (01)
25.102.ac (04)

Артикул

Название

Примечание

Количество

1

84393698

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9

M12 x 1.25 x 25mm ZNT

6шт.

2

5173886

BEVEL GEAR,30T

Ratio 10/30

1шт.

3

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

4

20419320

BALL,6.35mm OD

1шт.

5

87387938

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

1шт.

6

11067776

SNAP RING,M29, Ext

1шт.

7

5143242

RING NUT,M35 x 1.5

1шт.

8

5142026

RING,35.1mm ID x 45mm OD x 22mm L

1шт.

9

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

1шт.

10

26799950

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

35 x 72 x 18.25mm

1шт.

11

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

45 x 75 x 12mm

1шт.

12

14454380

O-RING,31.47mm ID x 1.78" Width

1шт.

Выбрано товаров: 12
