(25.100.AV[04]) - VAR - 743593 - FRONT AXLE, SUPPORT, ENGINE, MOUNTING, W/O FRONT LOADER

Запчасти Case IH FARMALL 100C (25.100.AV[04]) - VAR - 743593 - FRONT AXLE, SUPPORT, ENGINE, MOUNTING, W/O FRONT LOADER (25) - FRONT AXLE SYSTEM

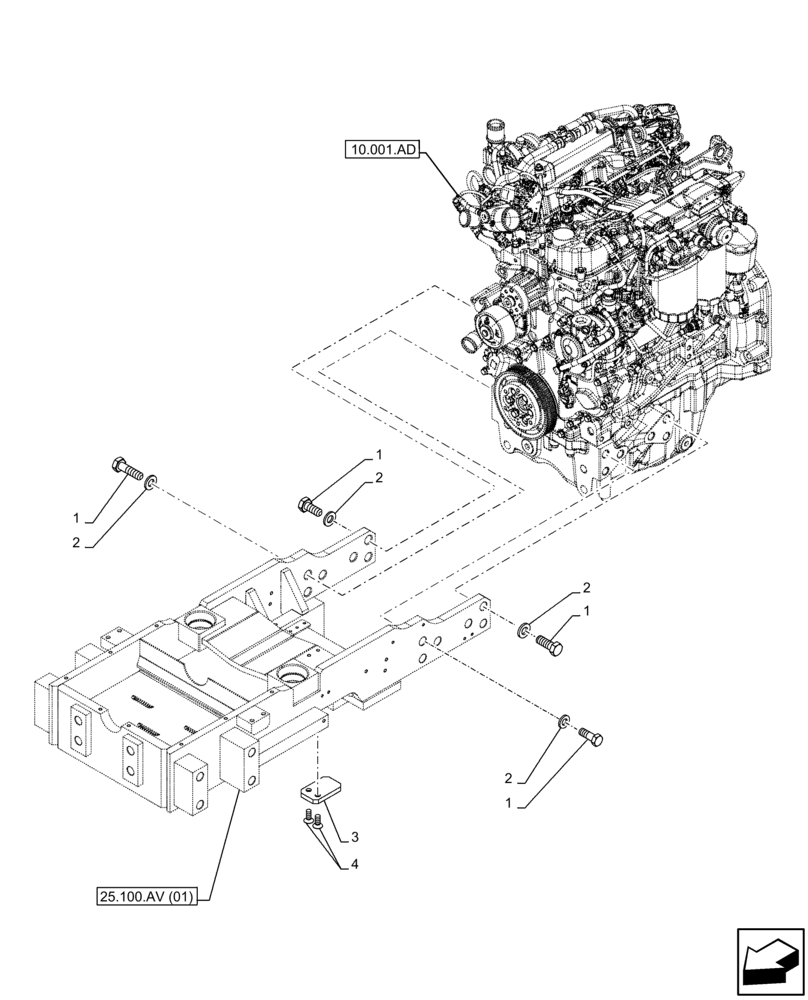

Схема запчастей Case IH FARMALL 100C - (25.100.AV[04]) - VAR - 743593 - FRONT AXLE, SUPPORT, ENGINE, MOUNTING, W/O FRONT LOADER (25) - FRONT AXLE SYSTEM
1
4
1
2
1
25.100.av (01)
2
1
10.001.ad
3
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15988231

BOLT,Hex, M20 x 1.5 x 55mm, Cl 10.9, Full Thd

12шт.

2

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

20 x 38 x 5.2

12шт.

3

87572509

SPACER

2шт.

4

14442621

SCREW,Flat Csk Hd, M10 x 1.25 x 25mm, Cl 8.8

4шт.

Выбрано товаров: 4
