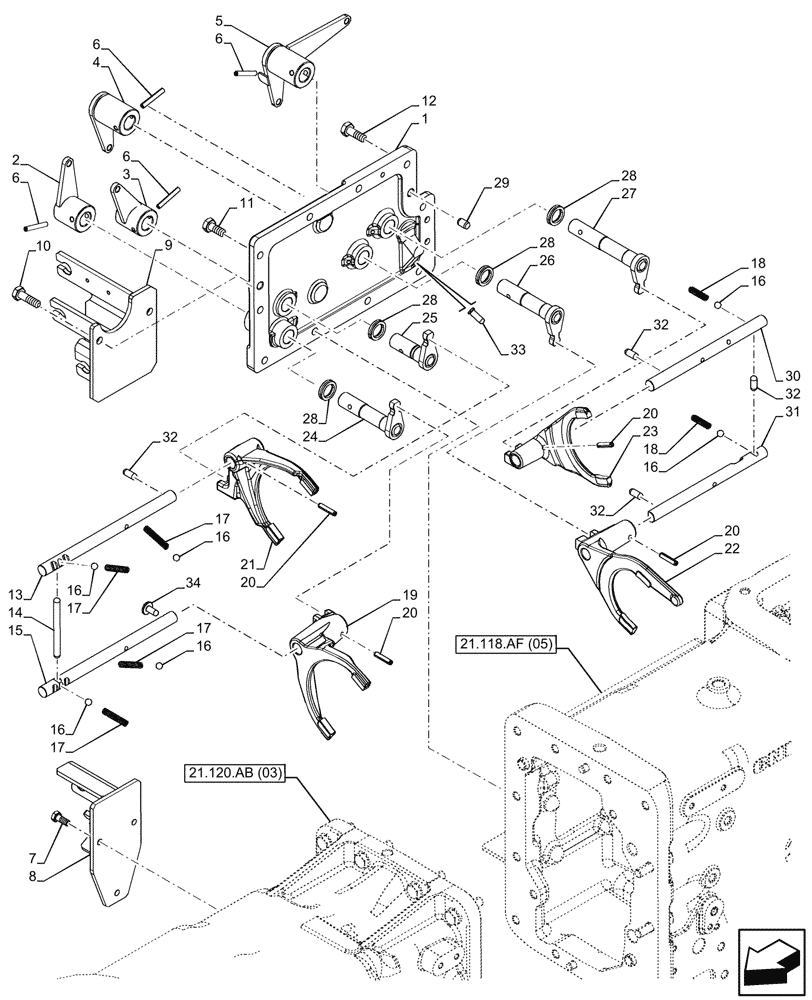

Запчасти Case IH FARMALL 100C (21.168.AK) - VAR - 334177, 390275 - TRANSMISSION, POWERSHUTTLE, GEARSHIFT, FORK, SHIFT RAIL, HI-LO (24X24) (21) - TRANSMISSION

1

84283342

COVER

1шт.

2

84388849

LEVER

1st-2nd Speed

1шт.

3

84388852

LEVER

3rd-4th Speed

1шт.

4

84388853

LEVER

Middle-Fast Range

1шт.

5

47753942

LEVER

Slow Range

1шт.

6

86625115

PIN,M6 x 40mm OAL

4шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

8

84388565

BRACKET

1шт.

9

47753918

BRACKET

1шт.

10

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

11

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

12

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

13

47389136

ROD

3rd-4th Speed

1шт.

14

84301074

RATCHET,8.5mm OD x 97.2mm L

1шт.

15

47389137

ROD

1st-2nd Speed

1шт.

16

20063390

BALL,8.73mm OD

6шт.

17

5168268

SPRING,Compression, 8mm OD x 42mm L

4шт.

18

4994342

SPRING,8mm OD x 30mm OAL

2шт.

19

47390143

FORK

1шт.

20

14604170

LOCK PIN,M6 x 30, Slotted

4шт.

21

84339459

FORK

1шт.

22

84283355

FORK

1шт.

23

84283362

FORK

1шт.

24

84315063

ROD

1st-2nd Speed

1шт.

25

84283364

ROD,20mm OD x 69.5mm L

3rd-4th Speed

1шт.

26

84315065

LEVER

Middle-Fast Range

1шт.

27

47390345

LEVER

Slow Range

1шт.

28

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

4шт.

29

5153109

DOWEL,10mm OD x 15mm L

2шт.

30

47389133

ROD

Slow Range

1шт.

31

47389135

ROD,16mm OD x 215mm L

Middle-Fast Range

1шт.

32

5149882

PAWL,8.5mm D x 23mm L

4шт.

33

47390146

PIN,8.5mm OD x 24.5mm L

1шт.

34

84477814

RATCHET

1шт.
