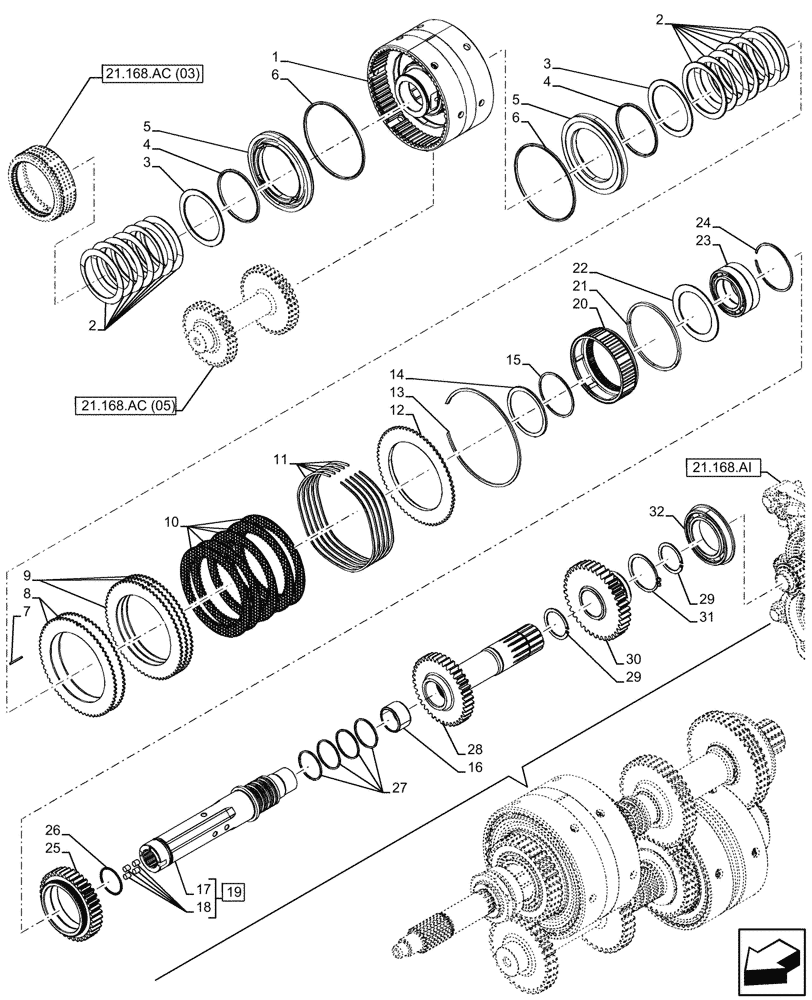

Запчасти Case IH FARMALL 100C (21.168.AC[04]) - VAR - 743552 - TRANSMISSION, POWERSHUTTLE, CLUTCH HOUSING, CLUTCH DISC, HI-LO (21) - TRANSMISSION

1

47372920

CLUTCH HOUSING

1шт.

2

5194761

SPRING,73mm ID x 93mm OD x 3.7mm Thk

14шт.

3

47137663

PISTON RING,77mm ID x 97mm OD x 2.5mm Thk

2шт.

4

5162398

SEALING RING,82.55mm ID x 90mm OD x 3.2mm Thk

2шт.

5

47372916

PISTON,90mm ID x 132mm OD x 16mm L

2шт.

6

5137563

GASKET,124.55mm ID x 132mm OD x 3.2mm Thk

2шт.

7

87683301

PIN,2.5mm x 26mm

1шт.

8

87325221

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2mm Thk

2шт.

9

87325222

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2.20mm Thk

3шт.

10

87310594

CLUTCH PLATE,114.72mm ID x 154.4mm OD x 2.3mm Thk

5шт.

11

81878948

SPRING,162.58mm ID

5шт.

12

87325224

PLATE,Z66, 117mm ID

1шт.

13

47438491

SNAP RING,M165.6, Int

1шт.

14

47137711

CIRCLIP,72.2mm ID x 85mm OD x 2.8mm Thk

1шт.

15

47137712

SNAP RING,70.2mm ID x 76mm OD x 1.5mm Thk

1шт.

16

84234630

NEEDLE BEARING,38mm ID x 43mm OD x 27mm W

1шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Incl in 19

1шт.

18

14536490

PLUG,8.00mm Dia x 15.70mm L

1шт.

19

47379380

SHAFT

ASSY, Incl 17, 18

1шт.

20

47371375

HUB,62T Internal / 63T External

1шт.

21

5162623

CIRCLIP,80mm ID

1шт.

22

47372918

SPACER,72.4mm ID x 97mm OD x 2mm L

1шт.

23

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

1шт.

24

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

25

84325969

GEAR,38T

1шт.

26

66805

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.

27

5175983

SEALING RING,46mm ID

4шт.

28

47379393

GEAR,38T

1шт.

29

11386776

SNAP RING,M45, Ext

2шт.

30

47379399

GEAR

1шт.

31

11069871

CIRCLIP

1шт.

32

47384240

BALL BEARING,60mm ID x 95mm OD x 18mm W

1шт.
