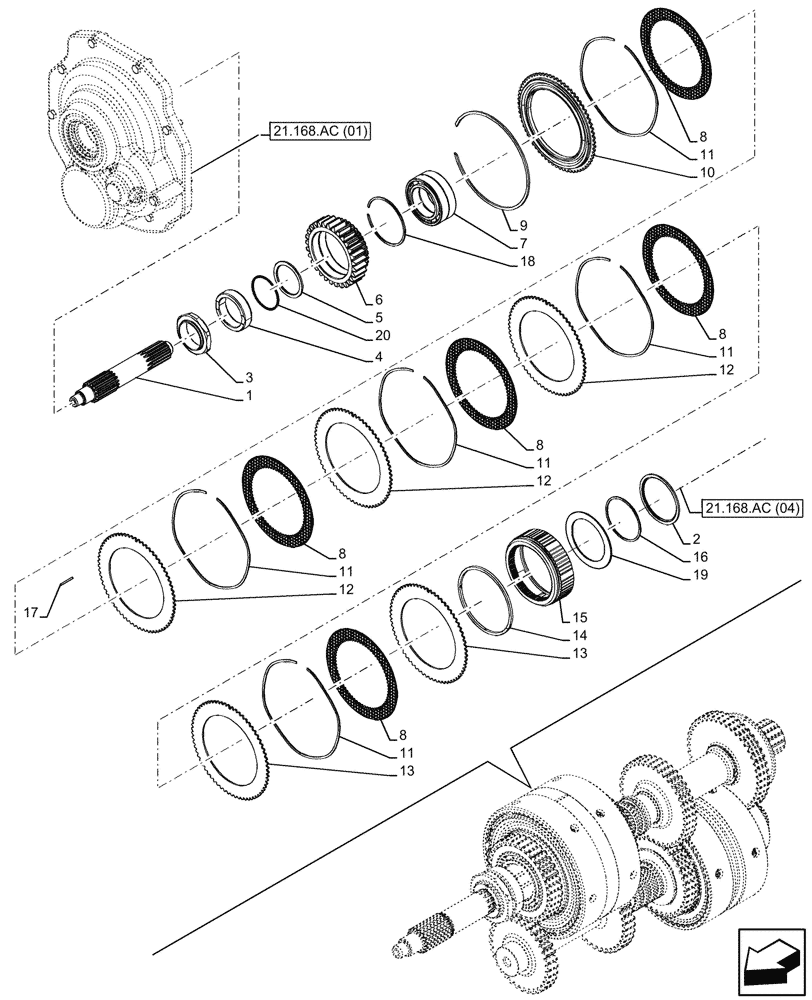

Запчасти Case IH FARMALL 100C (21.168.AC[03]) - VAR - 743552 - TRANSMISSION, POWERSHUTTLE, CLUTCH HOUSING, CLUTCH DISC, HI-LO (21) - TRANSMISSION

1

47493612

SHAFT

1шт.

2

47137711

CIRCLIP,72.2mm ID x 85mm OD x 2.8mm Thk

1шт.

3

84131958

NUT,M47.5 x 1.5

1шт.

4

84325968

SPACER,65mm ID x 50mm OD x 14mm L

1шт.

5

84325972

SPACER,60mm ID x 51mm OD x 2 mm L

1шт.

6

84325973

GEAR,Z35/Z62

1шт.

7

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

1шт.

8

87310594

CLUTCH PLATE,114.72mm ID x 154.4mm OD x 2.3mm Thk

5шт.

9

47438491

SNAP RING,M165.6, Int

1шт.

10

87325224

PLATE,Z66, 117mm ID

1шт.

11

81878948

SPRING,162.58mm ID

5шт.

12

87325222

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2.20mm Thk

3шт.

13

87325221

CLUTCH DISC,119.60mm ID x 167.50mm OD x 2mm Thk

2шт.

14

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

15

47371375

HUB,62T Internal / 63T External

1шт.

16

47137712

SNAP RING,70.2mm ID x 76mm OD x 1.5mm Thk

1шт.

17

87683301

PIN,2.5mm x 26mm

1шт.

18

5162623

CIRCLIP,80mm ID

1шт.

19

47372918

SPACER,72.4mm ID x 97mm OD x 2mm L

1шт.

20

14464180

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.
