Запчасти Case IH FARMALL 100C (21.135.AQ[02]) - TRANSMISSION, POWERSHIFT, CONTROL VALVE, HI-LO (21) - TRANSMISSION

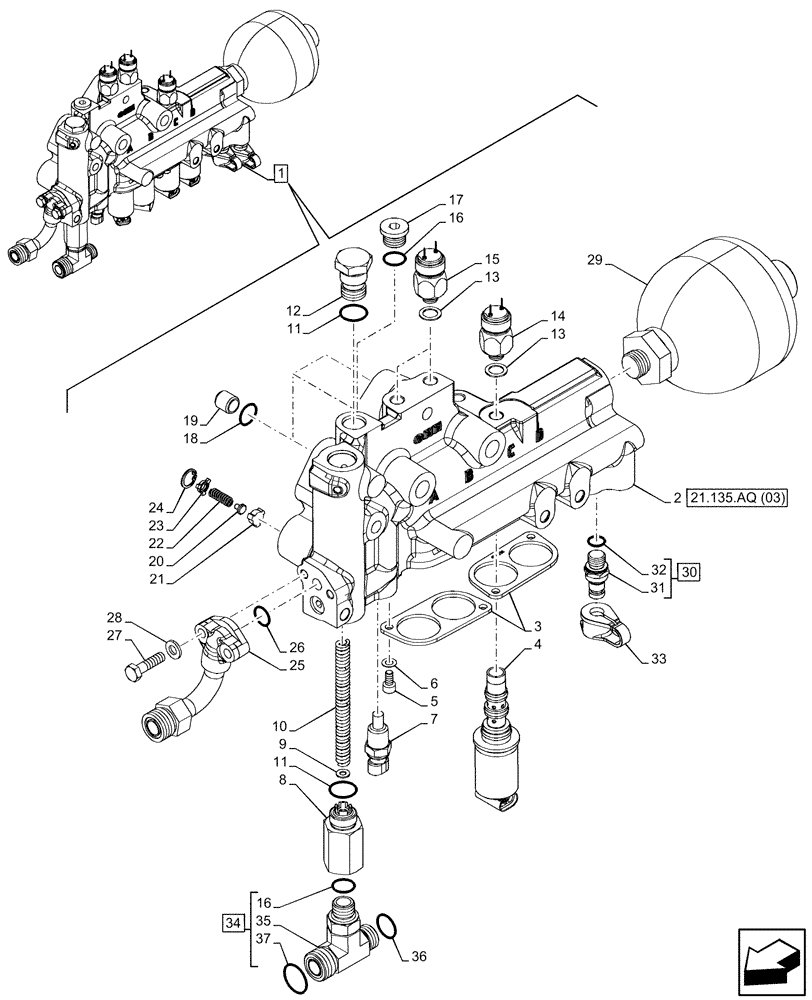

Схема запчастей Case IH FARMALL 100C - (21.135.AQ[02]) - TRANSMISSION, POWERSHIFT, CONTROL VALVE, HI-LO (21) - TRANSMISSION
21.135.aq (03)
37
19
2
29
32
34
3
20
8
16
31
22
23
17
35
27
15
18
14
1
30
13
11
10
21
5
7
25
11
16
4
26
36
6
24
33
12
9
28
13

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

1шт.

2

84473407

VALVE

1шт.

3

87343484

BRACKET

2шт.

4

87739558

SOLENOID VALVE,14W

Clutch Solenoids

4шт.

4

87739558R

REMAN-SOLENOID

Clutch Solenoids

4шт.

4

87739558C

CORE-SOLENOID

Return Number

4шт.

5

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

4шт.

6

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

4шт.

7

82028133

SENSOR,3/8"-18

Transmission Oil Temperature

1шт.

8

84348356

UNION,M22 x 1.5mm / M18 x 1.5mm

1шт.

9

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

10

84407183

SPRING,11.5mm OD x 120mm L

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

12

5185412

PLUG,11mm ID x 15mm OD x 15mm L

1шт.

13

10296160

SEALING WASHER,M12.2 x 18 x 1, Copper

3шт.

14

87494633

PRESSURE SWITCH

Power Steering, Minimum Oil Pressure

1шт.

15

87494632

PRESSURE SWITCH,M12 x 1.5

Transmission Oil, Safety, Position A & B

2шт.

16

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

17

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

18

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3шт.

19

5178778

SPACER,11mm ID x 15mm OD x 15mm L

3шт.

20

5188811

PIN,4mm OD x 8mm L

4mm

1шт.

21

5170395

BY-PASS VALVE

1шт.

22

5120761

SPRING,7.7mm OD x 20.5mm L

1шт.

23

5170396

DISC,6mm ID

6mm ID

1шт.

24

11057476

SNAP RING,M16, Int

1шт.

25

84564271

PRESSURE PIPE

To Cooler

1шт.

26

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

27

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

28

84365547

WASHER,8.4mm ID x 16mm OD x 2mm Thk

2шт.

29

87314179

ACCUMULATOR,0.75L

0.7/60

1шт.

30

5185423

COUPLING

ASSY, Incl 31 (Qty 1), 32 (Qty 1)

4шт.

31

NSS

NOT SOLD SEPARAT

Quick Coupling, Incl in 30

4шт.

32

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

33

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

Black, for Diagnostic Quick Coupling

4шт.

34

87616588

HYD CONNECTOR,13/16" - 16 ORFS x 1 - 14 ORB

ASSY, Incl 16, 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

Tee, Incl in 34

1шт.

36

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

37

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 39
