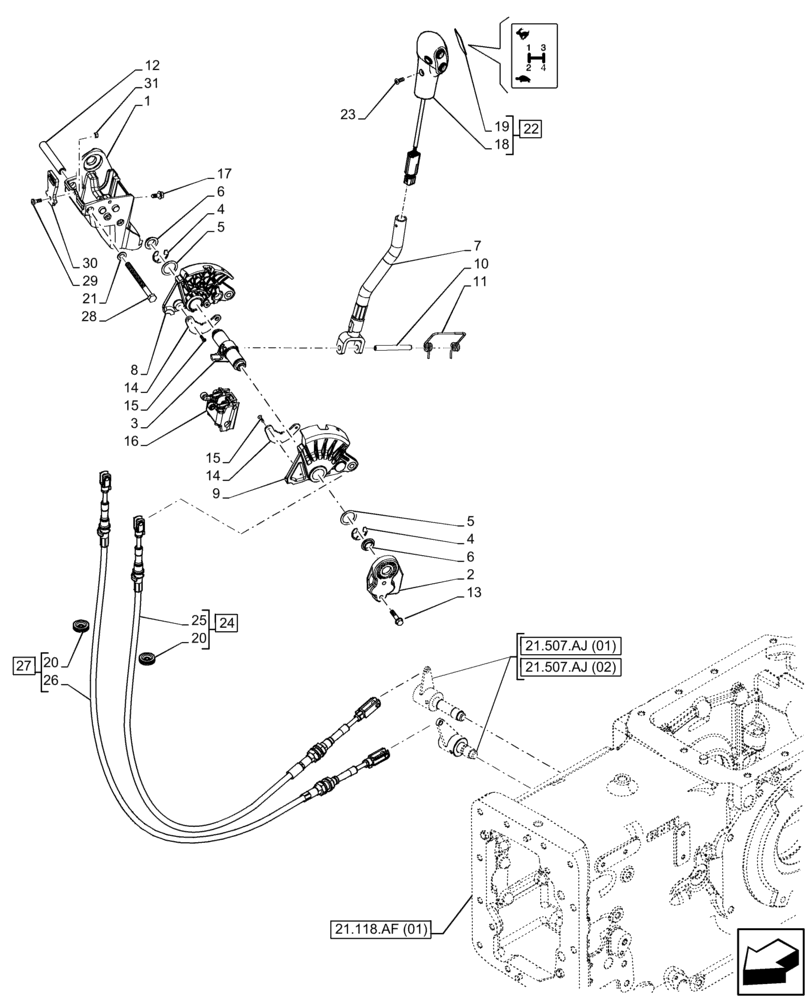

Запчасти Case IH FARMALL 100C (21.134.AI[03]) - VAR - 334177, 390275 - TRANSMISSION, POWERSHUTTLE, CONTROL LEVER, GEARSHIFT, HI-LO (24X24) (21) - TRANSMISSION

1

84583575

SUPPORT

Black

1шт.

2

84478538

SUPPORT

1шт.

3

47627747

SHAFT

1шт.

4

16165174

CIRCLIP,M16

2шт.

5

84583037

WASHER,22.5mm ID x 30mm OD x 1mm Thk

2шт.

6

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

2шт.

7

47731095

LEVER

1шт.

8

84583576

FERRULE

LH, Black

1шт.

9

84583577

FERRULE

RH, Black

1шт.

10

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

11

84325171

SPRING

1шт.

12

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

13

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

2шт.

14

84583496

PLATE

2шт.

15

47692858

SCREW,Pan Hd, M3.5 x 1.3 x 9.5mm

4шт.

16

84583500

PAN

1шт.

17

44995066

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 16

1шт.

18

NSS

NOT SOLD SEPARAT

Knob, Incl in 22

1шт.

19

82012270

DECAL

1шт.

20

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

21

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

22

84478190

LEVER

ASSY, Incl 19, 18

1шт.

23

13310977

SCREW,Pozidriv Oval Hd, Csk, M5 x 14mm, Full Thd, SST

1шт.

24

84366191

BOWDEN CONTROL

Gearshift Control, LH, ASSY, Incl 20 (Qty 1), 25

1шт.

25

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 24

1шт.

26

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 27

1шт.

27

84366192

BOWDEN CONTROL

Gearshift Control, RH, ASSY, Incl 20 (Qty 1), 26

1шт.

28

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

2шт.

29

13274111

SCREW,Pozidriv Pan Hd, M5 x 14mm, Cl 5.8, Full Thd

1шт.

30

47367599

BRACKET

1шт.

31

15896414

NUT,M5, Cl 8

1шт.
