(21.104.AS[02]) - TRANSMISSION, POWERSHUTTLE, RETURN PIPE, HI-LO

Запчасти Case IH FARMALL 100C (21.104.AS[02]) - TRANSMISSION, POWERSHUTTLE, RETURN PIPE, HI-LO (21) - TRANSMISSION

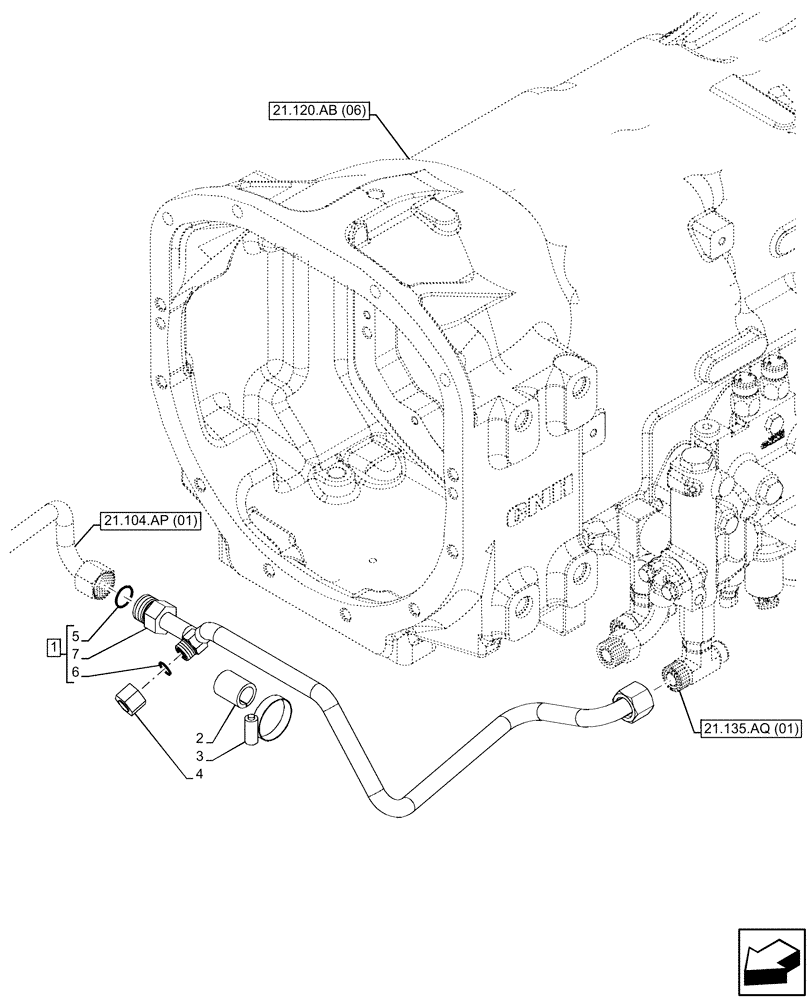

Схема запчастей Case IH FARMALL 100C - (21.104.AS[02]) - TRANSMISSION, POWERSHUTTLE, RETURN PIPE, HI-LO (21) - TRANSMISSION
21.135.aq (01)
6
2
7
3
1
5
4
21.120.ab (06)
21.104.ap (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47481430

PIPE

From Valve to Oil Filter, ASSY, Incl 5 - 7

1шт.

2

4959735

SPACER,18mm ID x 25mm OD x 30mm L

1шт.

3

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

4

9625546

CAP,11/16" - 16 ORFS

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

Выбрано товаров: 7
