Запчасти Case IH FARMALL 100C (21.104.AP[01]) - VAR - 330276, 334176, 334177, 390275 - TRANSMISSION, POWERSHUTTLE, HYDRAULIC OIL FILTER (12X12) (12X12 CREEPER) (24X24) (24X24 CREEPER) (21) - TRANSMISSION

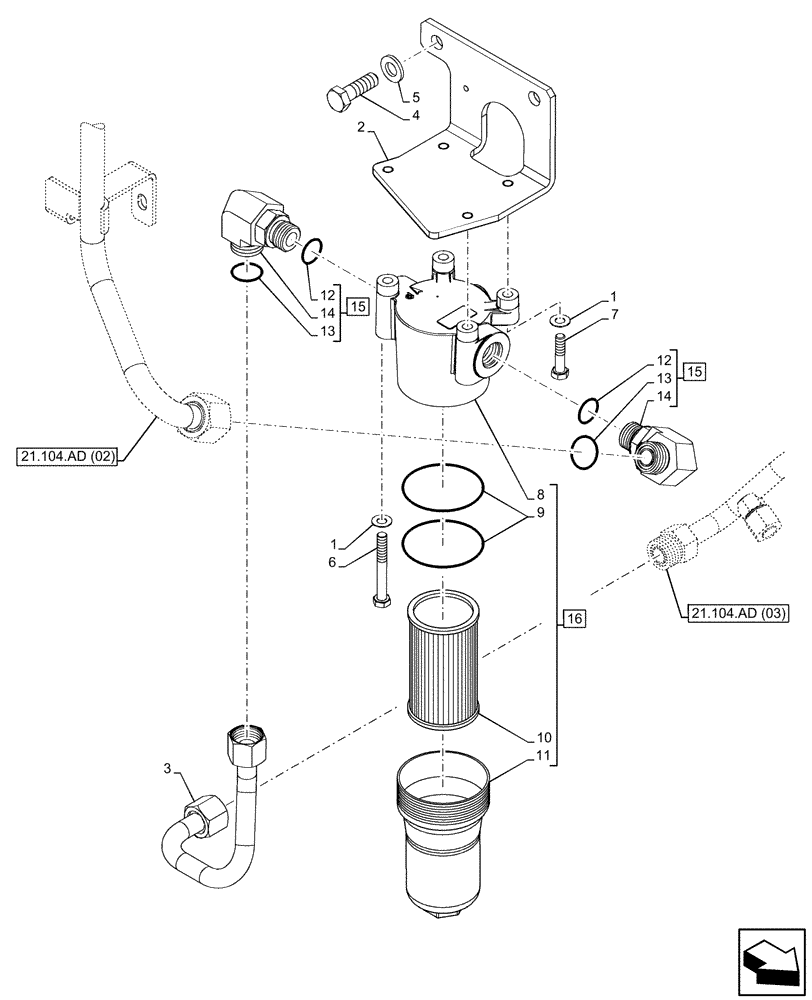

Схема запчастей Case IH FARMALL 100C - (21.104.AP[01]) - VAR - 330276, 334176, 334177, 390275 - TRANSMISSION, POWERSHUTTLE, HYDRAULIC OIL FILTER (12X12) (12X12 CREEPER) (24X24) (24X24 CREEPER) (21) - TRANSMISSION
21.104.ad (03)
9
4
12
3
6
14
7
14
1
13
15
1
13
11
10
5
2
15
8
12
16
21.104.ad (02)

Артикул

Название

Примечание

Количество

1

12602474

WAVE WASHER,Wave, M8.3

4шт.

2

47730651

BRACKET

1шт.

3

47458907

PIPE

Lube

1шт.

4

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

5

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

7

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

NSS

NOT SOLD SEPARAT

Head, Incl in 16

1шт.

9

5194880

O-RING KIT

Seals for Hydraulic Oil Filter

1шт.

10

5194879

ELEMENT

Hydraulic Oil, Transmission/Pump

1шт.

11

NSS

NOT SOLD SEPARAT

Housing, Incl in 16

1шт.

12

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Elbow, Incl in 15

1шт.

15

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 12 - 14

2шт.

16

5177856

FILTER,68.38mm OD x 102.5mm L, M22 x 1.5, 15 Microns

ASSY, Oil Filter, Incl 8 - 11

1шт.

Выбрано товаров: 16
