Запчасти Case IH FARMALL 100C (82.100.AA[07]) - VAR - 336744, 336746 - LOADER ARM, BUSHING, W/DIVERTER, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET

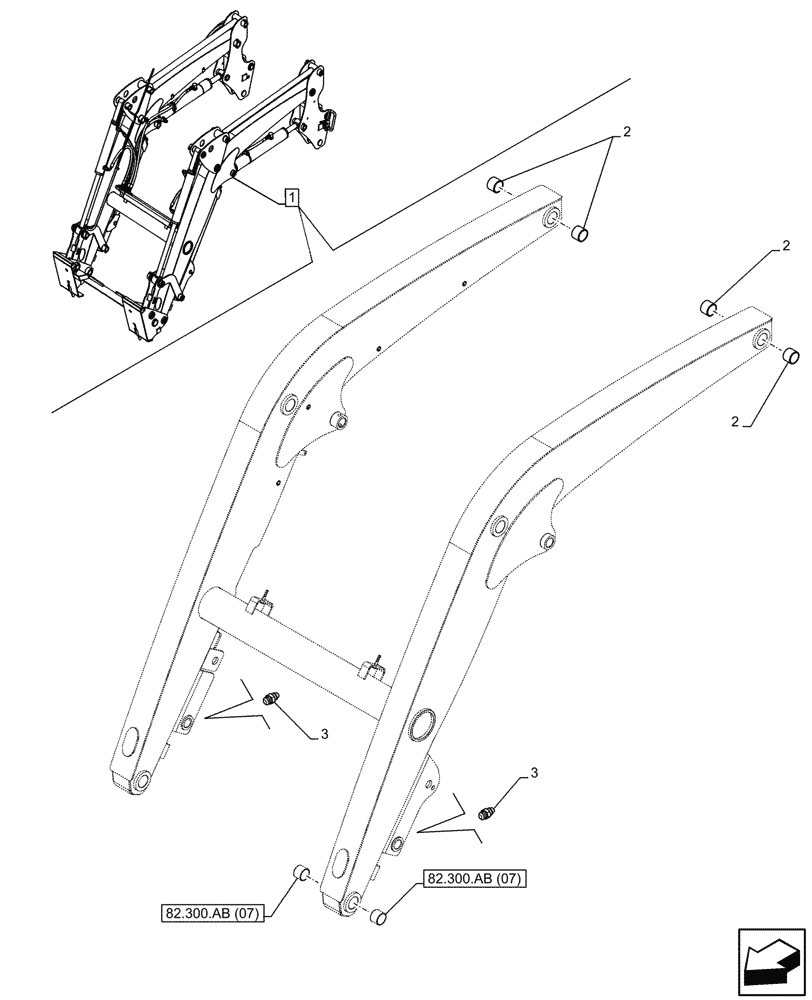

Схема запчастей Case IH FARMALL 100C - (82.100.AA[07]) - VAR - 336744, 336746 - LOADER ARM, BUSHING, W/DIVERTER, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET
82.300.ab (07)
3
3
2
1
2
2
82.300.ab (07)

Артикул

Название

Примечание

Количество

1

47696359

LOADER

ASSY, Incl 2, 3

1шт.

See also Loader Components in Figure 35.701.AX (07), 35.701.CB (09), 35.723.AA (11), 35.723.AB (07), 35.723.AF (05), 55.415.AQ (06), 82.100.AF (15), 82.100.AF (16), 82.100.BG (07), 82.300.AB (07), 82.300.AX (11), 82.300.AY (07), 90.108.AB (14), 90.108.AC (33)

1шт.

SSL Tool Attach.

1шт.

1

47696344

LOADER

ASSY, Incl 2, 3

1шт.

See also Loader Components in Figure 35.701.AX (07), 35.701.CB (09), 35.723.AA (11), 35.723.AB (07), 35.723.AF (05), 55.415.AQ (06), 82.100.AF (15), 82.100.AF (16), 82.100.BG (07), 82.300.AB (07), 82.300.AX (12), 82.300.AY (07), 90.108.AB (14), 90.108.AC (33)

1шт.

EU Tool Attach.

1шт.

2

81901809

BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L

4шт.

3

87588865

FITTING,M6 x 1 x 12mm L

1шт.

Выбрано товаров: 8
