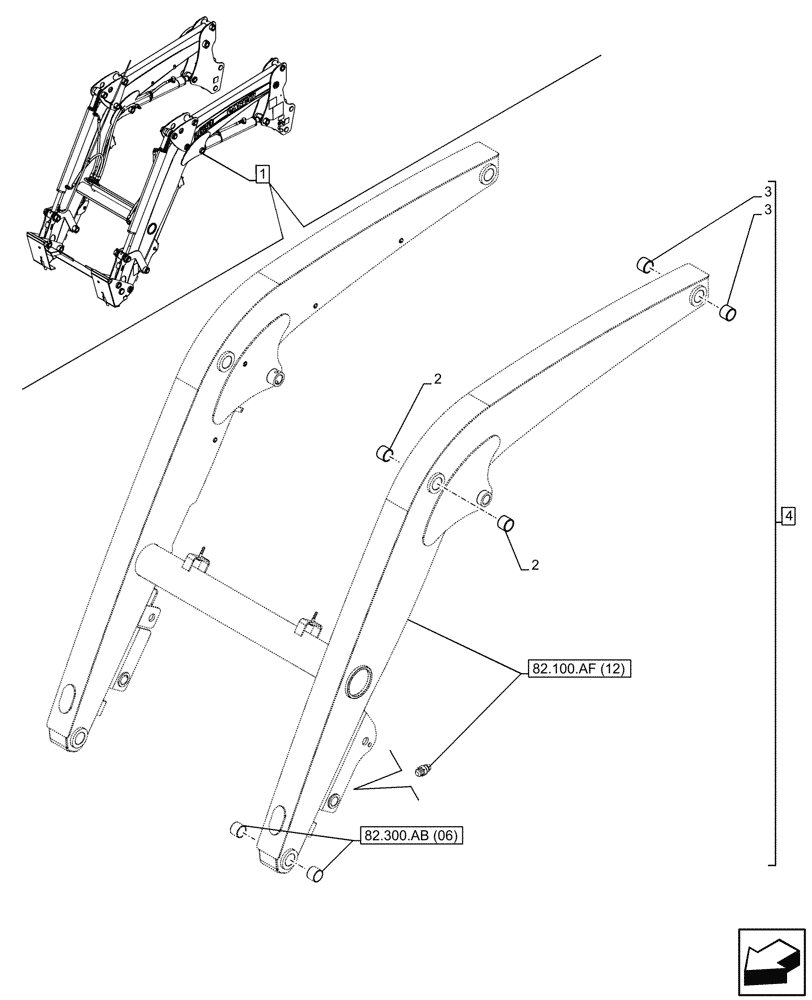

Запчасти Case IH FARMALL 100C (82.100.AA[06]) - VAR - 336744, 336746 - LOADER ARM, BUSHING, W/ SELF LEVELING (82) - FRONT LOADER & BUCKET

1

47589358

LOADER

ASSY, Incl 2 - 4

1шт.

See also Loader Components in Figure 35.701.AX (06), 35.701.CB (08), 35.723.AA (09), 35.723.AB (06), 82.100.AF (12), 82.100.AF (13), 82.100.BG (06), 82.300.AB (06), 82.300.AX (09), 82.300.AY (06), 90.108.AB (12), 90.108.AC (32)

1шт.

SSL Tool Attach

1шт.

1

47565458

LOADER

ASSY, Incl 2 - 4

1шт.

See also Loader Components in Figure 35.701.AX (06), 35.701.CB (08), 35.723.AA (09), 35.723.AB (06), 82.100.AF (12), 82.100.AF (13), 82.100.BG (06), 82.300.AB (06), 82.300.AX (10), 82.300.AY (06), 90.108.AB (12), 90.108.AC (32)

1шт.

EU Tool Attach

1шт.

2

81901809

BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L

4шт.

3

84596883

BUSHING

4шт.

4

47359357

LOADER BOOM

ASSY, Incl 2

1шт.

See also Arm Components in Figure 82.300.AB (06), 82.100.AF (12)

1шт.
