Запчасти Case IH FARMALL 100C (82.100.AA[01]) - VAR - 336734, 336736 - LOADER ARM, BUSHING, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET

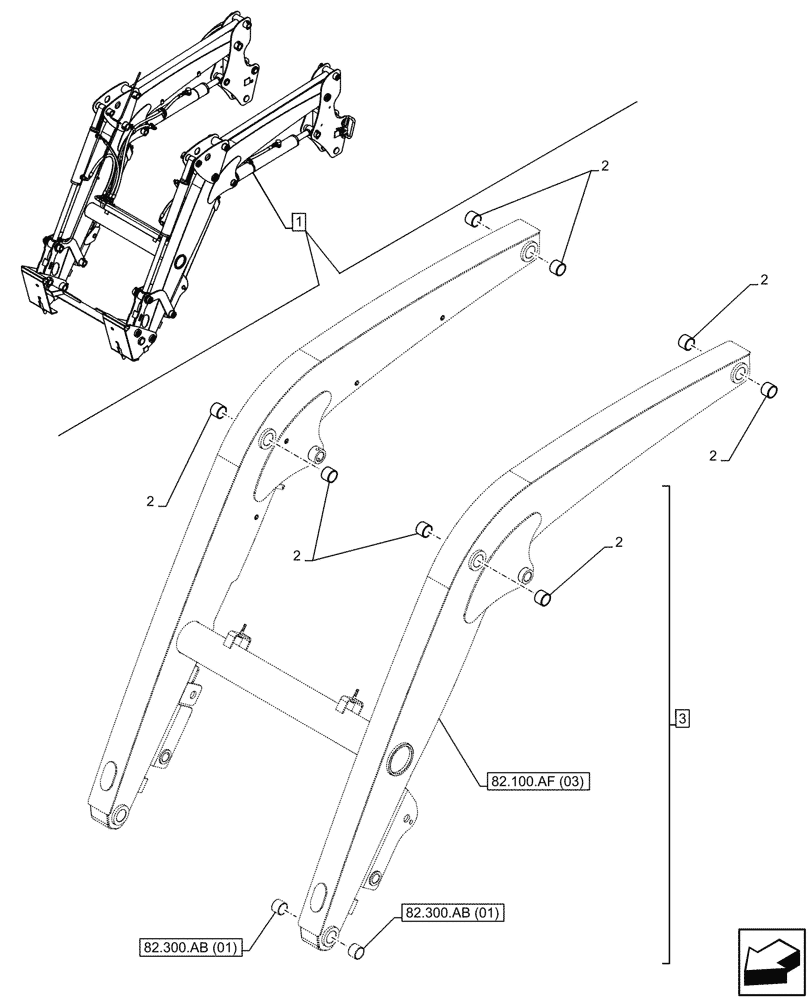

Схема запчастей Case IH FARMALL 100C - (82.100.AA[01]) - VAR - 336734, 336736 - LOADER ARM, BUSHING, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET
82.100.af (03)
2
2
2
2
1
3
2
2
82.300.ab (01)
82.300.ab (01)

Артикул

Название

Примечание

Количество

1

84321725

LOADER

ASSY, Incl 2, 3

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.701.CB (01), 35.723.AA (01), 35.723.AB (01), 82.100.AF (03), 82.100.AF (04), 82.100.BG (02), 82.300.AB (01), 82.300.AX (02), 82.300.AY (01), 90.108.AB (08), 90.108.AC (25)

1шт.

SSL Tool Attach.

1шт.

1

47556496

LOADER

ASSY, Incl 2, 3

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.701.CB (01), 35.723.AA (01), 35.723.AB (01), 82.100.AF (03), 82.100.AF (04), 82.100.BG (02), 82.300.AB (01), 82.300.AX (03), 82.300.AY (01), 90.108.AB (08), 90.108.AC (25)

1шт.

EU Tool Attach.

1шт.

2

81901809

BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L

8шт.

3

84421999

ARM

ASSY, Incl 2

1шт.

See also Arm Components in Figure 82.100.AF (03), 82.300.AB (01)

1шт.

Выбрано товаров: 9
