Запчасти Case IH FARMALL 100C (27.120.AI[06]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, HEAVY DUTY, 2WD, 4WD, RH (27) - REAR AXLE SYSTEM

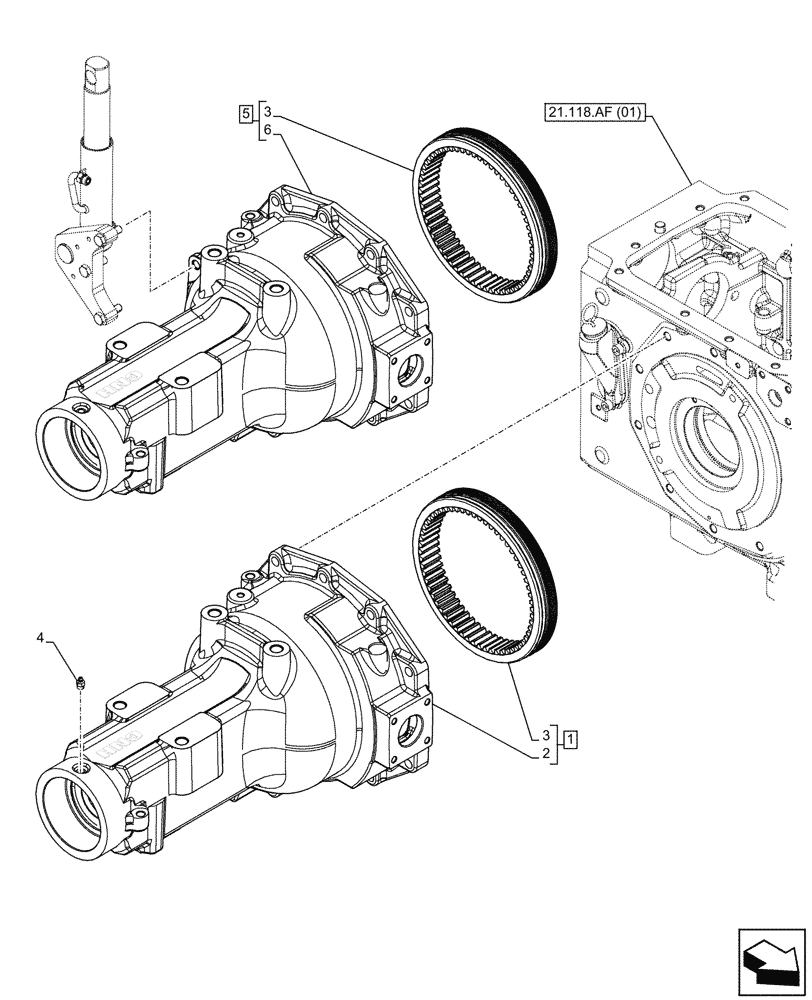

Схема запчастей Case IH FARMALL 100C - (27.120.AI[06]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, HEAVY DUTY, 2WD, 4WD, RH (27) - REAR AXLE SYSTEM
21.118.af (01)
2
3
3
5
4
1
6

Артикул

Название

Примечание

Количество

1

47368383

AXLE HOUSING

RH, ASSY, Incl 2, 3, Years: -10-SEP-15

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

47362014

GEAR,60T

1шт.

4

13407211

LUBE NIPPLE,M10 x 1

2шт.

5

47871126

AXLE HOUSING

RH, ASSY, Incl 3, 6, Start Year: 11-SEP-15

1шт.

6

NSS

NOT SOLD SEPARAT

Body, Incl in 5

1шт.

Выбрано товаров: 6
