Запчасти Case IH FARMALL 100C (27.120.AI[05]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, HEAVY DUTY, 2WD, 4WD, LH (27) - REAR AXLE SYSTEM

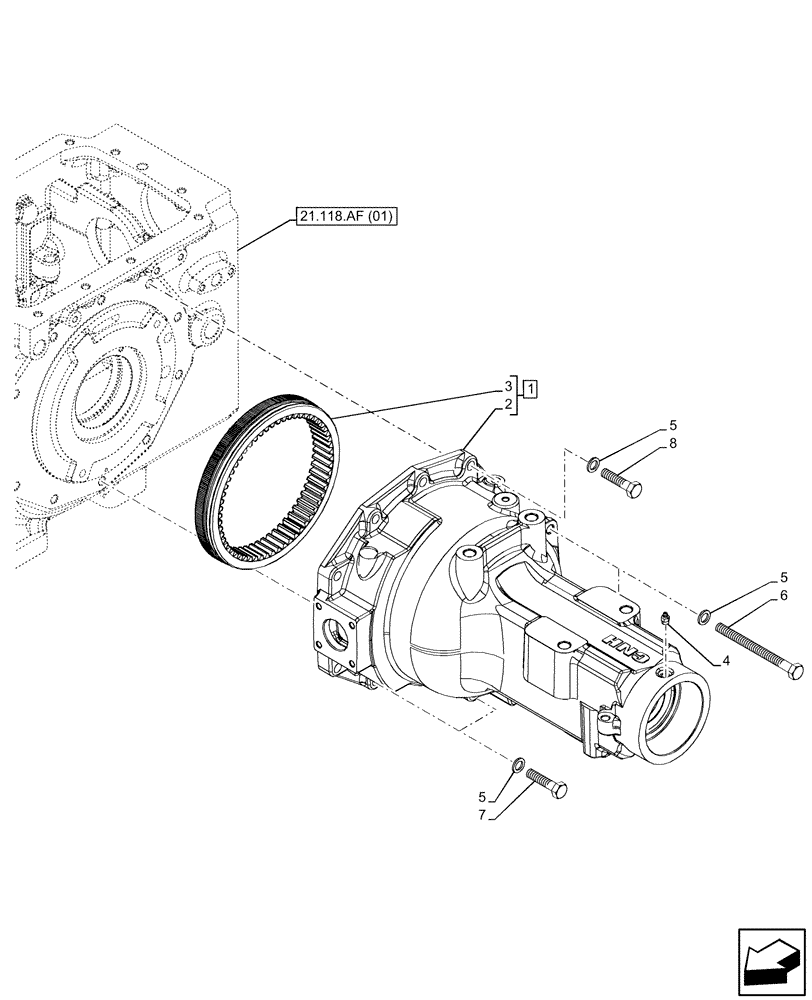

Схема запчастей Case IH FARMALL 100C - (27.120.AI[05]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, HEAVY DUTY, 2WD, 4WD, LH (27) - REAR AXLE SYSTEM
21.118.af (01)
2
5
4
8
5
6
3
5
7
1

Артикул

Название

Примечание

Количество

1

47368388

AXLE HOUSING

LH, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

47362014

GEAR,60T

1шт.

4

13407211

LUBE NIPPLE,M10 x 1

M10 x 1.18mm

2шт.

5

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

10шт.

6

15978721

BOLT,Hex, M14 x 1.5 x 160mm, Cl 8.8

2шт.

7

15977524

BOLT,Hex, M14 x 1.5 x 60mm, Cl 8.8

2шт.

8

15860121

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8

6шт.

Выбрано товаров: 8
