Запчасти Case IH FARMALL 100C (27.120.AI[02]) - VAR - 390411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, 2WD, 4WD, RH (27) - REAR AXLE SYSTEM

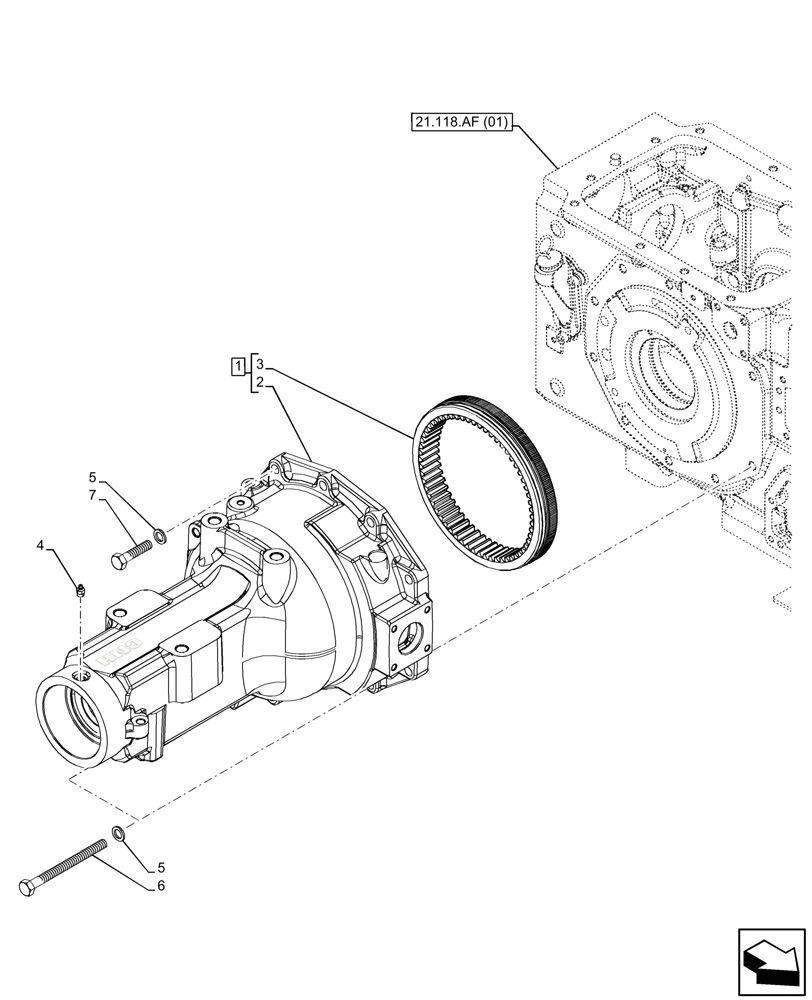

Схема запчастей Case IH FARMALL 100C - (27.120.AI[02]) - VAR - 390411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, 2WD, 4WD, RH (27) - REAR AXLE SYSTEM
21.118.af (01)
6
5
5
4
1
2
3
7

Артикул

Название

Примечание

Количество

1

47368369

AXLE HOUSING

RH, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

47362011

GEAR,60T

1шт.

4

13407211

LUBE NIPPLE,M10 x 1

1шт.

5

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

10шт.

6

15978721

BOLT,Hex, M14 x 1.5 x 160mm, Cl 8.8

2шт.

7

15860121

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8

8шт.

Выбрано товаров: 7
