Запчасти Case IH FARMALL 100C (27.120.AF[03]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, SHAFT, PLANETARY GEAR, HEAVY DUTY, 2WD, 4WD (27) - REAR AXLE SYSTEM

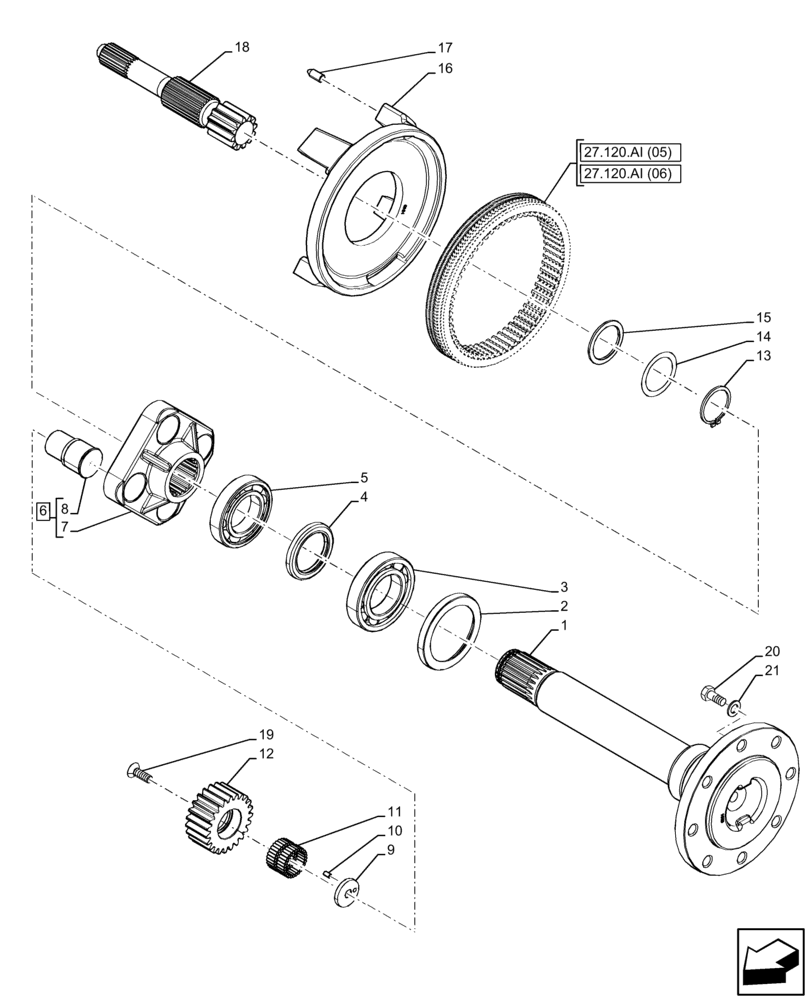

Схема запчастей Case IH FARMALL 100C - (27.120.AF[03]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, SHAFT, PLANETARY GEAR, HEAVY DUTY, 2WD, 4WD (27) - REAR AXLE SYSTEM
15
2
11
20
19
1
4
13
5
6
21
17
7
8
27.120.ai (05)
3
16
10
9
12
18
14
27.120.ai (06)

Артикул

Название

Примечание

Количество

1

47477248

AXLE

1шт.

2

5199548

OIL SEAL,95.00mm ID x 130.00mm OD x 16.00mm

1шт.

3

20645490

BALL BEARING,75 mm ID x 130 mm OD x 25 mm

1шт.

4

5124206

SEAL,70mm ID x 100mm OD x 10mm Thk

1шт.

5

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

6

47361077

PLANET CARRIER

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 6

1шт.

8

47361064

PIN,44.4mm OD x 83.3mm L

4шт.

9

84318094

SPACER,13mm ID x 43.8mm OD x 7mm L

4шт.

10

10489520

PIN,6mm OD x 12mm L

6 x 12mm R80 PLN

4шт.

11

84340307

NEEDLE BEARING,38.2mm ID x 48.2mm OD x 15.8mm Thk

4шт.

12

84319725

GEAR,23T, 48.2mm ID, 53mm L

4шт.

13

84191677

CIRCLIP

Ext 52mm

1шт.

14

84472864

SHIM,55.3mm ID x 72.5mm OD x 0.15mm Thk

1шт.

15

84336055

SPACER,55mm ID x 70mm OD x 4mm L

1шт.

16

47565299

SUPPORT

1шт.

17

87590370

DOWEL

12 x 30mm

2шт.

18

47361104

SHAFT,299.5mm L

LH, 299.5mm

1шт.

18

47361105

SHAFT,74.5mm L

RH, 274.5mm

1шт.

19

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

4шт.

20

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

M18 x 1.5 x 40mm

8шт.

21

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

8шт.

Выбрано товаров: 22
