Запчасти Case IH FARMALL 90V (90.160.220) - VAR - 743523, 759022, 759023, 759024 - TRIM PANEL, PILLAR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

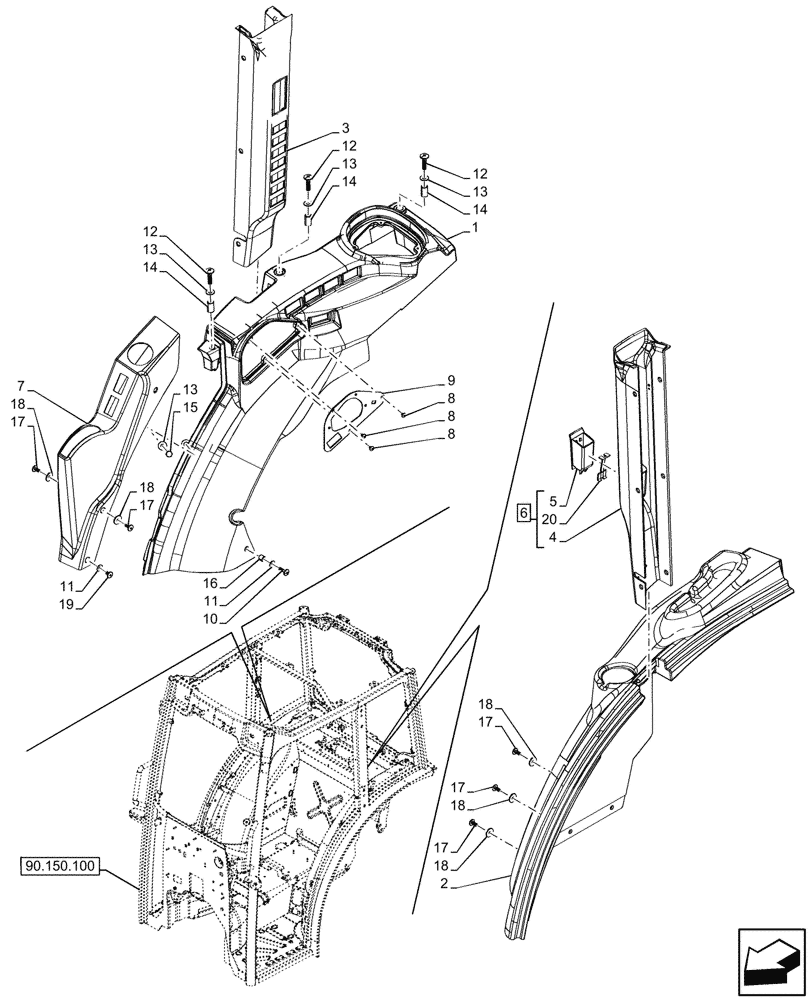

Схема запчастей Case IH FARMALL 90V - (90.160.220) - VAR - 743523, 759022, 759023, 759024 - TRIM PANEL, PILLAR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.100
7
9
12
12
8
20
13
14
18
14
19
13
5
18
8
3
15
10
6
17
17
17
18
11
17
4
17
13
12
2
14
11
8
1
18
18
13
16

Артикул

Название

Примечание

Количество

1

84485424

TRIM PANEL

RH

1шт.

2

47439125

TRIM PANEL

LH

1шт.

3

84154065

COVER

RH

1шт.

4

NSS

NOT SOLD SEPARAT

Pillar, Incl in 6

1шт.

5

5199950

ASH TRAY

1шт.

6

47123853

SOFT TRIM

Pillar, LH, ASSY, Incl 4, 5, 16

1шт.

7

84482000

COVER

1шт.

8

47925756

SCREW,Cheese, M4 x 12mm

3шт.

9

84481998

PANEL

1шт.

10

14778911

SCREW,Cross Rec Cheese Hd, M6 x 22mm, Cl 5.8

1шт.

11

14498821

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

2шт.

12

14780711

SCREW,Cross Rec Cheese Hd, M8 x 35mm, Cl 5.8

3шт.

13

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

4шт.

14

87726554

SPACER

3шт.

15

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

16

5196907

SPRING,33.5mm L x 15mm W x 0.5mm L

1шт.

16

84496163

SPACER,8mm ID x 12mm OD x 10mm L

1шт.

17

5183681

SCREW,Cheese, M6 x 16mm

5шт.

18

47397098

WASHER,22mm ID x 6.5mm OD x 2mm Thk

5шт.

19

14064514

SCREW,Cheese Hd, M6 x 12mm, Cl 5.8

1шт.

20

5196907

SPRING,33.5mm L x 15mm W x 0.5mm L

1шт.

Выбрано товаров: 21
