Запчасти Case IH FARMALL 90V (90.150.140) - VAR - 759031 - ROOF, W/ ECO CAB, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

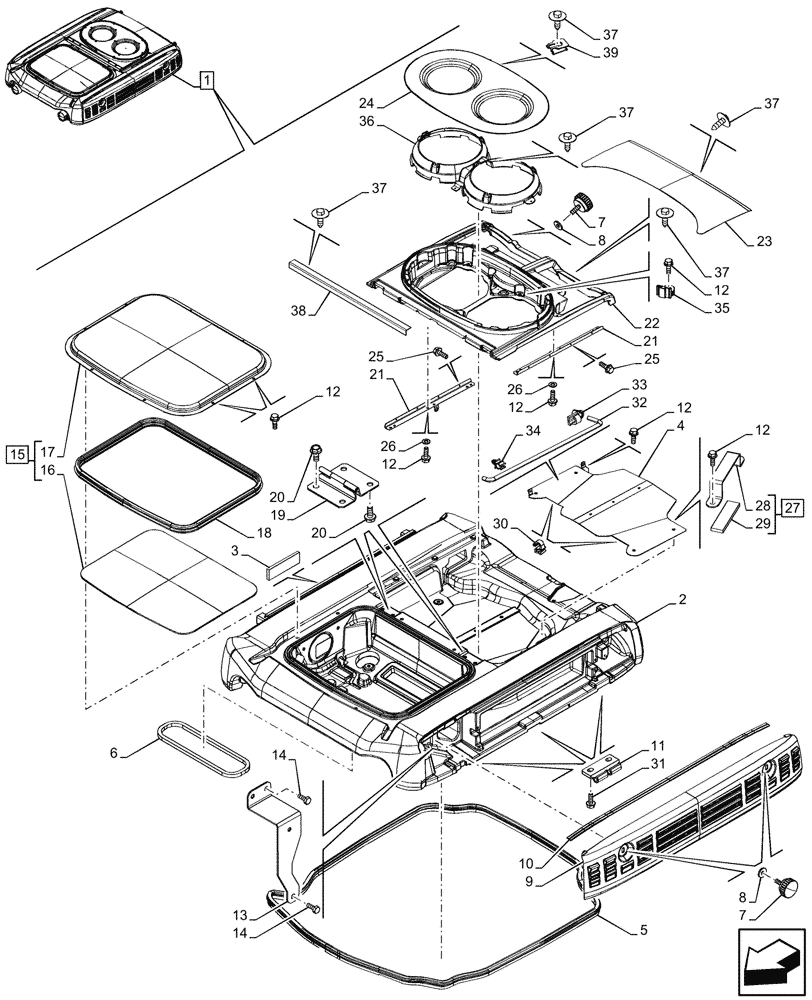

Схема запчастей Case IH FARMALL 90V - (90.150.140) - VAR - 759031 - ROOF, W/ ECO CAB, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
19
9
13
18
34
10
33
37
20
37
21
4
12
5
26
26
38
25
15
36
12
14
28
30
39
16
37
11
20
12
25
24
23
12
17
21
27
37
22
31
8
8
32
37
14
3
35
6
7
2
1
29
12
7

Артикул

Название

Примечание

Количество

1

47988505

ROOF

ASSY, Incl 2 - 39

1шт.

See also Roof Components in Figure 50.100.040, 50.104.010, 50.200.040, 50.200.050, 55.050.010, 55.050.020, 55.404.210

1шт.

2

47704736

ROOF

Red

1шт.

3

NSS

NOT SOLD SEPARAT

Label, Incl in 1

1шт.

4

48008819

PLATE

1шт.

5

47704740

GASKET,36mm W x 11mm Thk

1шт.

6

47792463

GASKET,460.5mm L x 134.4mm W x 15mm Thk

1шт.

7

47792468

KNOB

6шт.

8

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6шт.

9

NSS

NOT SOLD SEPARAT

Grille, Incl in 1

2шт.

10

47704874

GASKET,1126mm L x 22.6mm W

2шт.

11

47775735

HINGE

6шт.

12

16286024

FLANGE BOLT,Hex, M6 x 16, Full Thd, Cl 8.8

30шт.

13

47781190

BRACKET

1шт.

14

10444614

HEX SOC SCREW,Hex, M4 x 12mm, Cl 5.8

3шт.

15

48024248

COVER

ASSY, Incl 16, 17

1шт.

16

47773037

HEAT SHIELD

1шт.

17

NSS

NOT SOLD SEPARAT

Cover, Incl in 15

1шт.

18

47704860

GASKET,36mm W x 11mm Thk

1шт.

19

47779864

HINGE

2шт.

20

13839011

BOLT,Hex, M8 x 18mm, Full Thd, R50 IND

8шт.

21

47780537

BRACKET

2шт.

22

NSS

NOT SOLD SEPARAT

Condenser Cover, Red, Incl in 1

1шт.

23

48036899

GRILLE

Rear

1шт.

24

48024252

CONDENSER

1шт.

25

15516401

SELF-TAP SCREW,Self Tap, Hex, M4 x 2.5 x 16mm

8шт.

26

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

27

48009245

BRACKET

ASSY, Incl 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Bracket, Incl in 27

1шт.

29

48021570

GASKET,60mm L x 20mm W x 3mm Thk

1шт.

30

47704875

FASTENER,10mm ID x 13mm Thk x 19.6mm L

2шт.

31

48043746

SCREW,M6 x 16mm L

12шт.

32

47902793

ROD,8mm Thk x 319.2mm L

1шт.

33

47902792

CLIP,33mm L x 14mm W

1шт.

34

47902796

CLIP,Top Entry, 7.5mm ID x 13.8mm L

1шт.

35

47792470

BRACKET

8шт.

36

47994903

CONVEYOR

1шт.

37

48041383

SELF-TAP SCREW

27шт.

38

47994901

GRILLE

1шт.

39

48041361

CLIP,6mm ID x 15mm L x 11.5mm W

6шт.

Выбрано товаров: 40
