Запчасти Case IH FARMALL 90V (90.150.120) - VAR - 759031, 759033 - FRAME, SUPPORT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

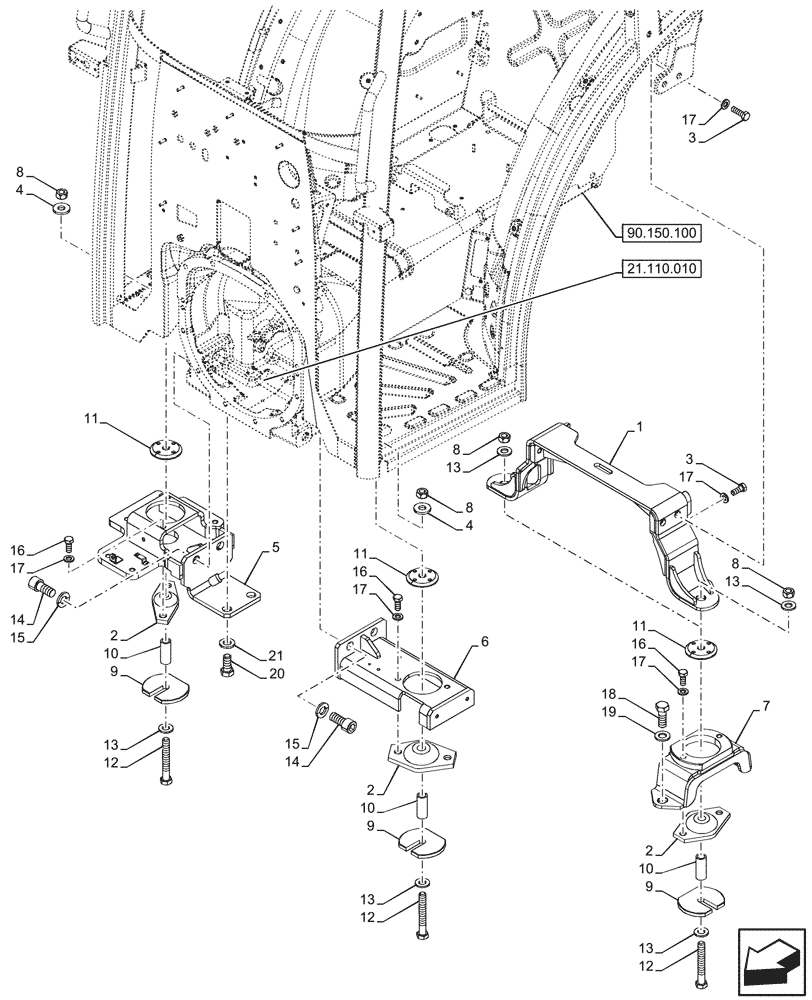

Схема запчастей Case IH FARMALL 90V - (90.150.120) - VAR - 759031, 759033 - FRAME, SUPPORT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
21.110.010
11
20
9
21
3
11
13
17
15
7
17
16
17
9
13
12
4
3
8
12
16
10
8
14
5
6
17
8
9
15
12
13
10
10
16
13
4
17
11
13
2
2
14
1
2
18
19
8
90.150.100

Артикул

Название

Примечание

Количество

1

48034588

SUPPORT

Rear

1шт.

2

87688301

ISOLATOR,90mm OD x 64mm L

4шт.

3

15540634

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

6шт.

4

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

2шт.

5

47762353

SUPPORT

RH Front

1шт.

6

47618824

SUPPORT

LH Front

1шт.

7

47618821

BRACKET

Rear

2шт.

8

12164124

NUT,M16 x 1.5, Cl 8

4шт.

9

47947949

RING,110mm OD x 10mm Thk

4шт.

10

5137163

SPACER,17mm ID x 24mm OD x 60mm L

4шт.

11

47590296

PLATE

4шт.

12

11369634

BOLT,Hex, M16 x 1.5 x 110, 10.9

4шт.

13

11191574

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

6шт.

14

11124524

BOLT,Hex, M20 x 45, 8.8, Full Thd

6шт.

15

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

6шт.

16

15540434

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

17

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

14шт.

18

15984334

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

4шт.

19

11191679

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

20

15984124

SCREW,Hex, M18 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

21

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

2шт.

Выбрано товаров: 21
