Запчасти Case IH FARMALL 90V (90.150.110) - VAR - 759031, 759033 - FRAME, PLATE, PLUGS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

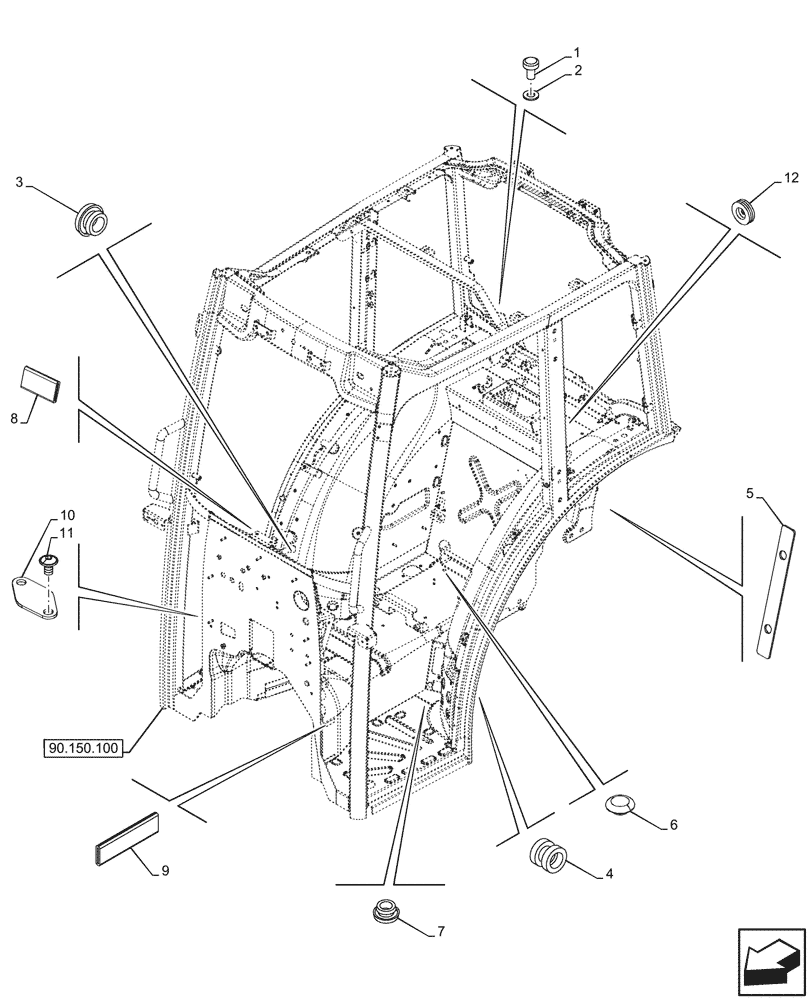

Схема запчастей Case IH FARMALL 90V - (90.150.110) - VAR - 759031, 759033 - FRAME, PLATE, PLUGS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.100
12
7
3
6
2
4
10
5
1
9
8
11

Артикул

Название

Примечание

Количество

1

5112608

PLUG,9mm, Black

6шт.

2

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

3шт.

3

5140164

PLUG

1шт.

4

10402580

RING,14mm ID x 27mm OD x 7mm Thk

1шт.

5

47446929

RUBBER BUMPER,2x15mm OD x 235mm L

2шт.

6

5155575

PLUG,10mm, Black

2шт.

7

5120060

PLUG,30mm, Black

2шт.

8

87303663

FLEXIBLE HOSE,10mm ID x 30mm L

1шт.

9

5177320

FLEXIBLE SHEATH,10mm ID x 60mm L

3шт.

10

47839293

COVER

1шт.

11

2700886

HEX SOC SCREW,Hex, M6 x 4 x 10mm, Cl 10.9 BNZ

2шт.

12

10397480

GROMMET,14mm ID x 20mm Groove D x 27mm OD

1шт.

Выбрано товаров: 12
