Запчасти Case IH FARMALL 90V (90.150.030) - VAR - 330808, 333804, 758929 - FLOOR, PTO, PLATE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

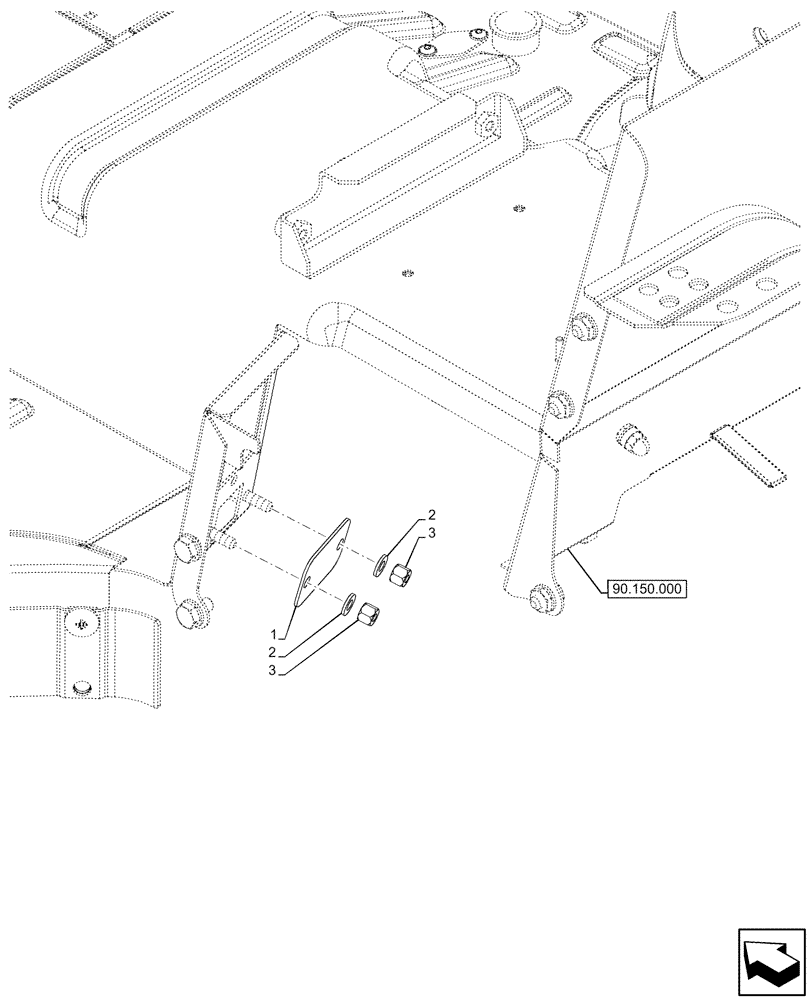

Схема запчастей Case IH FARMALL 90V - (90.150.030) - VAR - 330808, 333804, 758929 - FLOOR, PTO, PLATE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.000
2
1
2
3
3

Артикул

Название

Примечание

Количество

1

47840025

PLATE

1шт.

2

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

2шт.

3

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

Выбрано товаров: 3
