(90.124.050) - VAR - 331859 - SEAT, AIR SUSPENSION, CAB

Запчасти Case IH FARMALL 90V (90.124.050) - VAR - 331859 - SEAT, AIR SUSPENSION, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

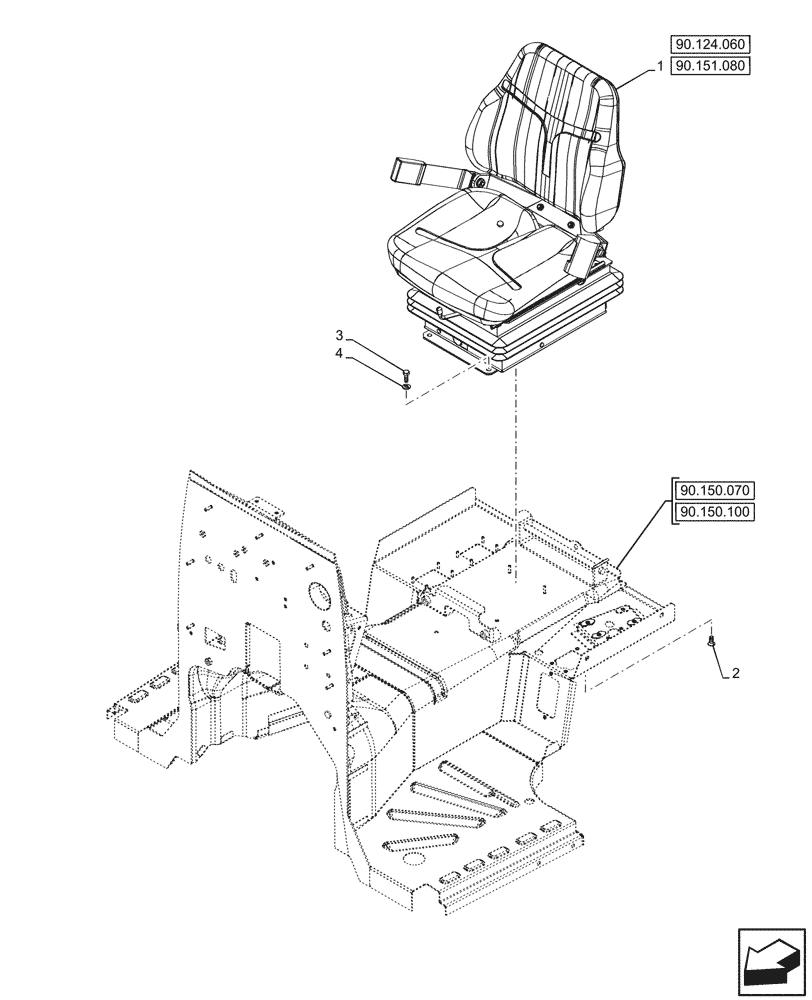

Схема запчастей Case IH FARMALL 90V - (90.124.050) - VAR - 331859 - SEAT, AIR SUSPENSION, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.100
2
3
1
4
90.151.080
90.124.060
90.150.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47916762

DRIVER SEAT

Fabric, BK 5425

1шт.

2

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

4шт.

4

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

Выбрано товаров: 4
