(55.513.040) - VAR - 330273 - TRANSMISSION, CONTROLS, LEVER, SWITCH, HI-LO, CAB

Запчасти Case IH FARMALL 90V (55.513.040) - VAR - 330273 - TRANSMISSION, CONTROLS, LEVER, SWITCH, HI-LO, CAB (55) - ELECTRICAL SYSTEMS

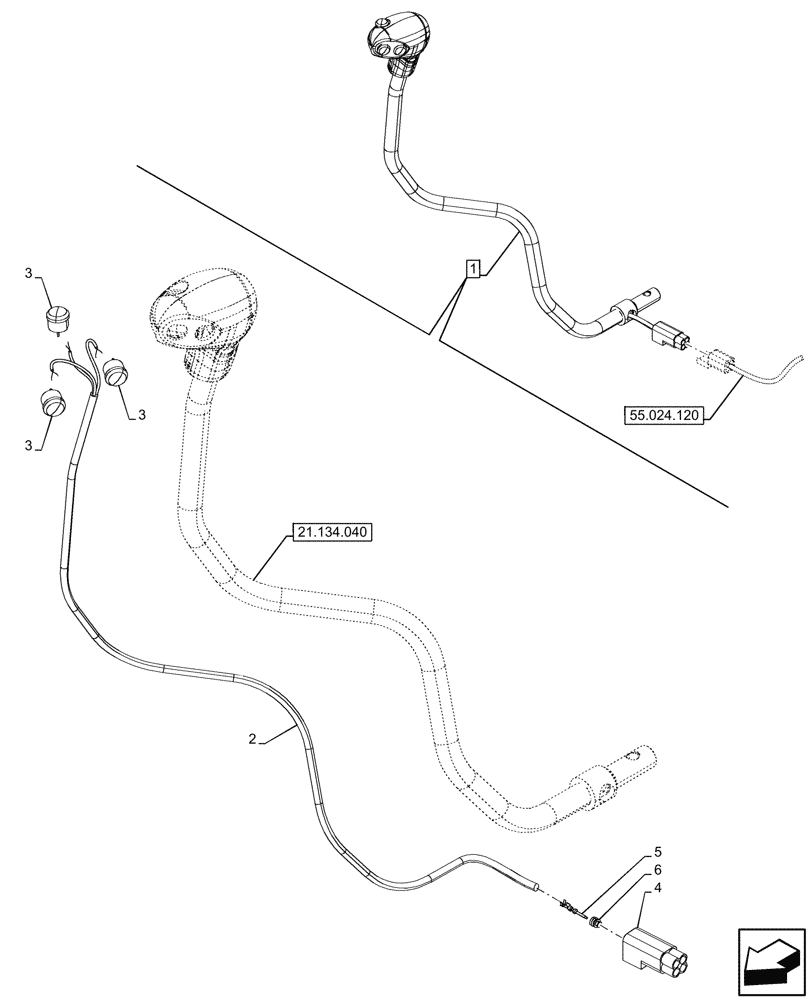

Схема запчастей Case IH FARMALL 90V - (55.513.040) - VAR - 330273 - TRANSMISSION, CONTROLS, LEVER, SWITCH, HI-LO, CAB (55) - ELECTRICAL SYSTEMS
55.024.120
5
21.134.040
2
1
3
3
4
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87471697

LEVER

ASSY, Hi-Lo, Incl 2 - 6

1шт.

See also Components in Figure 21.134.030

1шт.

2

87520251

WIRE HARNESS

1шт.

3

87398154

SWITCH

Transmission Control

3шт.

4

5174954

MULTIPOLE CONNECTOR,Male, 4 Pole

1шт.

5

5174873

CABLE TERMINAL,Tin, 0.5 - 1mm

4шт.

6

5174876

GROMMET,6mm OD x 6.5mm H, Red

4шт.
