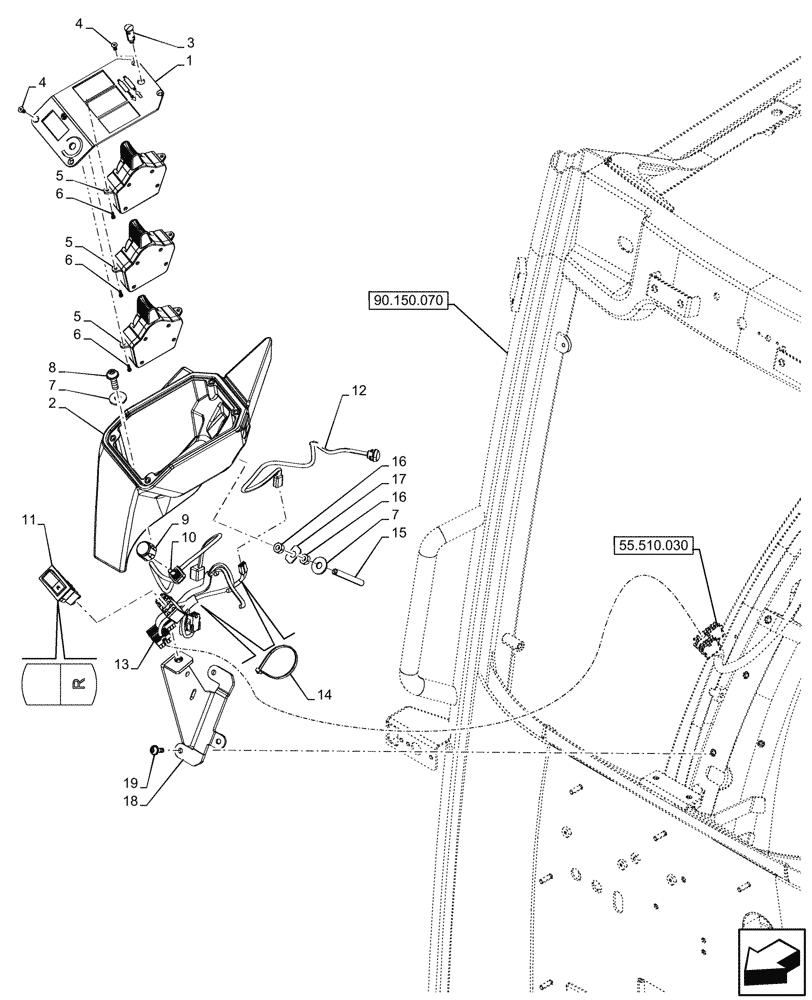

Запчасти Case IH FARMALL 90V (55.512.070) - VAR - 342255, 342256, 342257, 342258, 759021 - MID-MOUNT CONTROL VALVE, CONSOLE (55) - ELECTRICAL SYSTEMS

1

47897806

PANEL

1шт.

2

47933171

TRIM

1шт.

3

47056321

INDICATOR LIGHT

1шт.

4

14440027

SCREW,Flat Csk Hd, M4 x 10mm, Cl 8.8

4шт.

5

87486098

ROCKER SWITCH

3шт.

6

15956607

SCREW,Pan Hd, M3 x 3 x 12mm

6шт.

7

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

8

47570438

SCREW,M8 x 25mm L, Cl 8.8

1шт.

9

47471144

KNOB

1шт.

10

87755846

POTENTIOMETER,5V, 30mA, 150mW

1шт.

11

47684682

ROCKER SWITCH

1шт.

12

87485775

SWITCH ASSY

1шт.

13

47877701

WIRE HARNESS

1шт.

14

14560187

COLLAR,199mm L

5шт.

15

47867771

STUD,M8 x 1.25 x 70mm L, ZN TCR 8

1шт.

16

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

17

47867682

WASHER,9mm ID x 25mm L x 1.5mm Thk

1шт.

18

47867711

BRACKET

1шт.

19

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.
