(55.510.010) - VAR - 341065, 341066, 341375 - MAIN HARNESS, 4WD, CAB

Запчасти Case IH FARMALL 90V (55.510.010) - VAR - 341065, 341066, 341375 - MAIN HARNESS, 4WD, CAB (55) - ELECTRICAL SYSTEMS

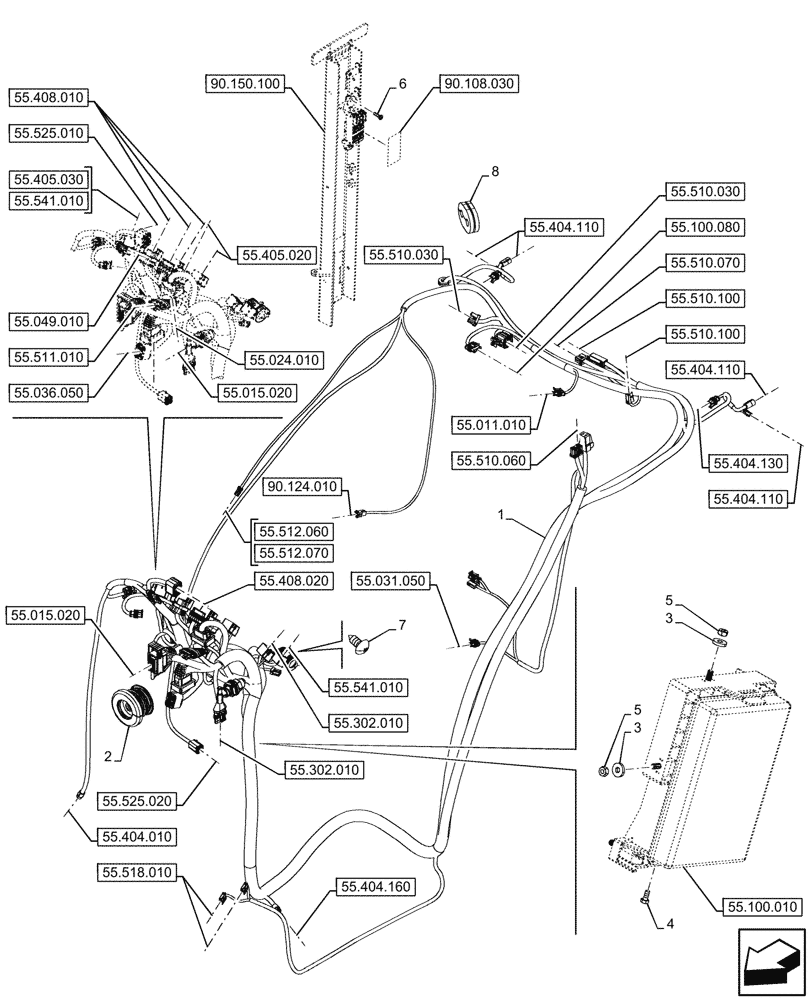

Схема запчастей Case IH FARMALL 90V - (55.510.010) - VAR - 341065, 341066, 341375 - MAIN HARNESS, 4WD, CAB (55) - ELECTRICAL SYSTEMS
55.405.030
3
1
8
6
2
4
5
7
5
3
55.100.080
55.408.020
55.510.100
55.510.100
55.404.010
55.404.110
55.404.110
55.404.110
55.302.010
55.302.010
55.525.020
55.405.020
55.512.070
90.124.010
55.404.160
55.100.010
55.518.010
55.510.070
55.404.130
55.049.010
55.036.050
55.541.010
55.541.010
55.024.010
55.015.020
55.015.020
55.525.010
90.108.030
90.150.100
55.510.060
55.512.060
55.031.050
55.408.010
55.011.010
55.510.030
55.510.030
55.511.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47876262

WIRE HARNESS

Cab Main Harness

1шт.

See also Figure 55.100.010

1шт.

2

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

70mm ID

1шт.

3

12647824

WASHER,6.15mm ID x 16mm OD x 3mm Thk

2шт.

4

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.

5

15896211

NUT,M6, Cl 8

2шт.

6

13272217

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

2шт.

7

16082104

SELF-TAP SCREW,Spcl, Pozidriv Pan Hd, M3 x 2 x 8mm, HI-LO

4шт.

8

87565323

GROMMET,2x8mm ID x 38mm L x 10mm Thk

2шт.
