(55.404.260) - SIDE LAMP ASSY, CAB

Запчасти Case IH FARMALL 90V (55.404.260) - SIDE LAMP ASSY, CAB (55) - ELECTRICAL SYSTEMS

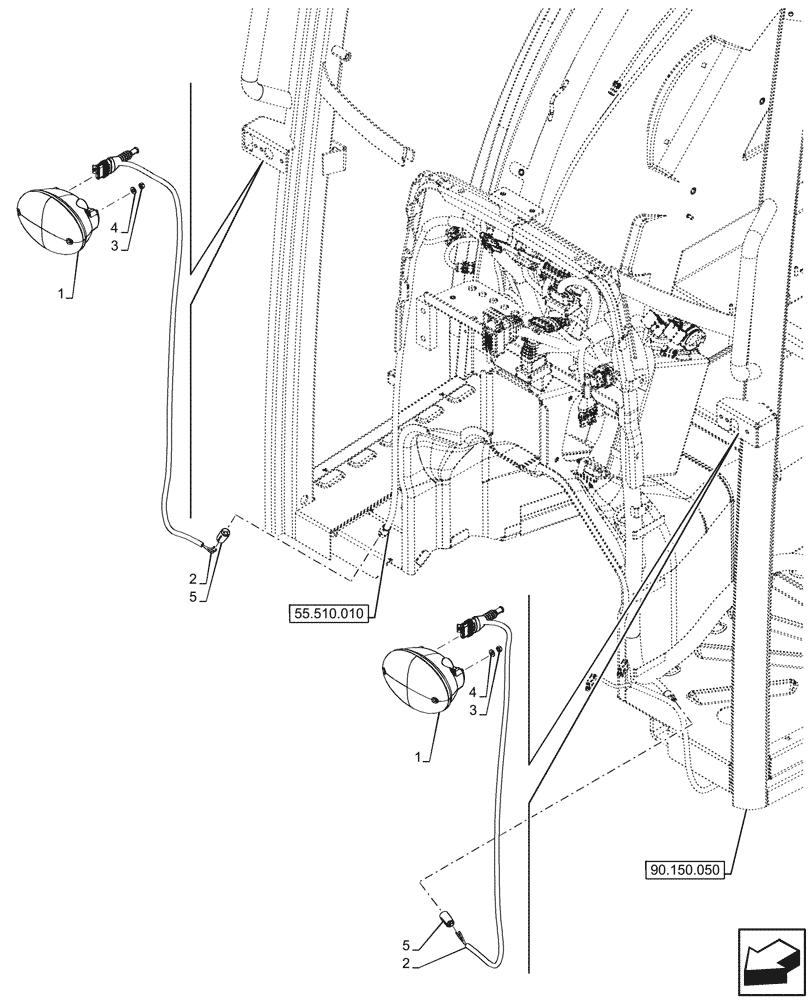

Схема запчастей Case IH FARMALL 90V - (55.404.260) - SIDE LAMP ASSY, CAB (55) - ELECTRICAL SYSTEMS
90.150.050
4
5
3
2
4
1
5
3
2
1
55.510.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87356311

LAMP,Halogen, 12V, 21W, Amber

2шт.

2

87486021

ELECTRIC CABLE

from Main Harness to Lamp

2шт.

3

15896414

NUT,M5, Cl 8

4шт.

4

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

4шт.

5

47135267

ELEC CONNECTOR,Female, 4 Cavities

2шт.
