(55.130.090) - REAR, 3 POINT HITCH, STABILIZER, CONTROL PANEL, HARNESS, W/DOC, CAB

Запчасти Case IH FARMALL 90V (55.130.090) - REAR, 3 POINT HITCH, STABILIZER, CONTROL PANEL, HARNESS, W/DOC, CAB (55) - ELECTRICAL SYSTEMS

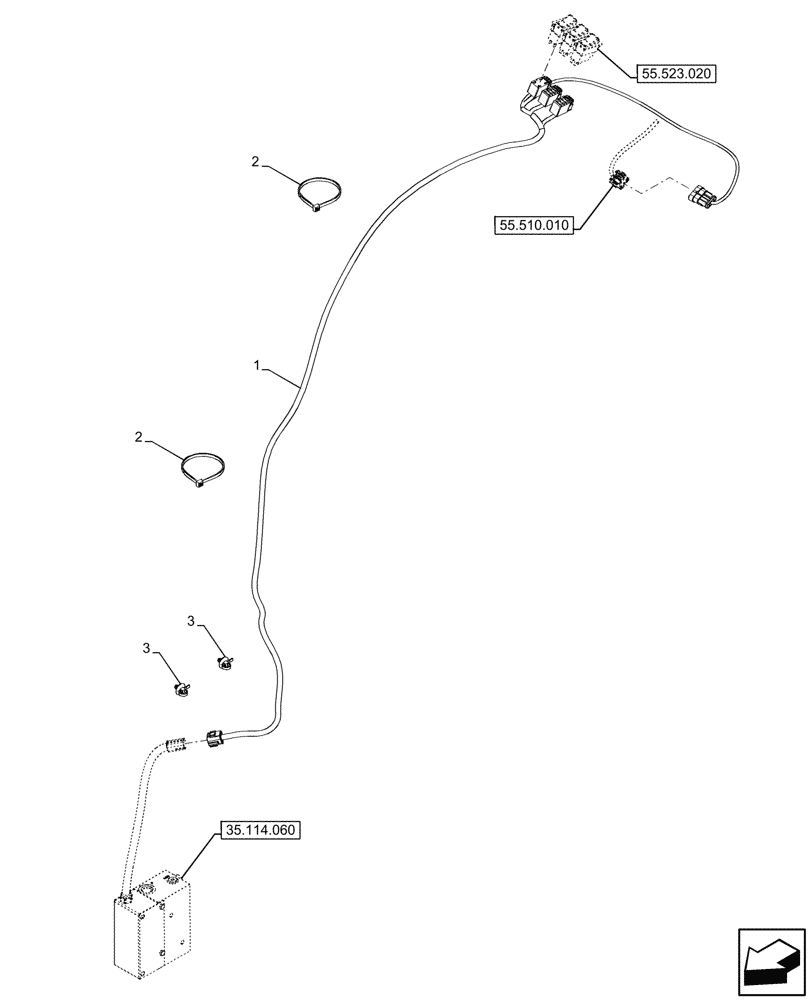

Схема запчастей Case IH FARMALL 90V - (55.130.090) - REAR, 3 POINT HITCH, STABILIZER, CONTROL PANEL, HARNESS, W/DOC, CAB (55) - ELECTRICAL SYSTEMS
35.114.060
2
3
2
3
1
55.510.010
55.523.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48001607

WIRE HARNESS

Harness, Hydraulic Stabilizer and RH Stay

1шт.

2

14560187

COLLAR,199mm L

2шт.

3

82033028

CABLE TIE,170mm L

2шт.
