(55.130.040) - VAR - 341846, 341847, 342382, 342383, 342384, 342385, 743523 - REAR, 3 POINT HITCH, ELECTRONIC DRAFT CONTROL (EDC), SWITCH, CONTROL PANEL, CAB

Запчасти Case IH FARMALL 90V (55.130.040) - VAR - 341846, 341847, 342382, 342383, 342384, 342385, 743523 - REAR, 3 POINT HITCH, ELECTRONIC DRAFT CONTROL (EDC), SWITCH, CONTROL PANEL, CAB (55) - ELECTRICAL SYSTEMS

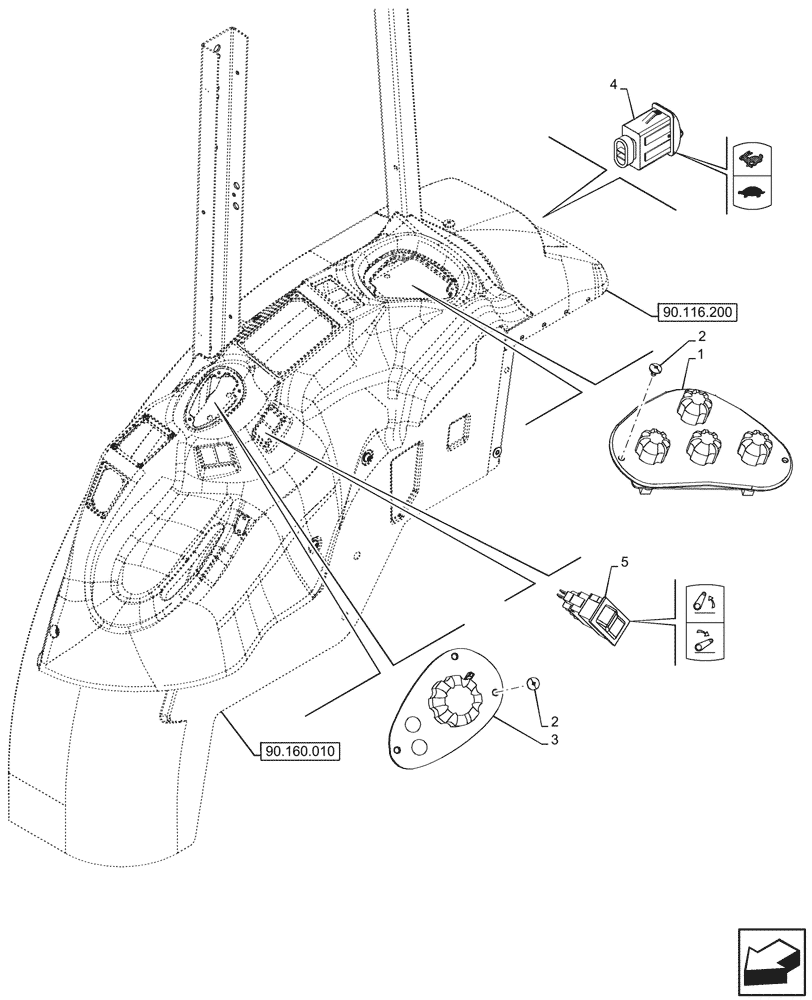

Схема запчастей Case IH FARMALL 90V - (55.130.040) - VAR - 341846, 341847, 342382, 342383, 342384, 342385, 743523 - REAR, 3 POINT HITCH, ELECTRONIC DRAFT CONTROL (EDC), SWITCH, CONTROL PANEL, CAB (55) - ELECTRICAL SYSTEMS
90.160.010
2
5
4
2
1
3
90.116.200
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47135380

PANEL

EDC Control

1шт.

2

14775214

SCREW,Cross Rec Cheese Hd, M4 x 8mm, Cl 5.8

6шт.

3

5173565

PANEL

EDC

1шт.

4

47957402

PUSH BUTTON SWITCH

RH, External EDC Control

1шт.

4

47957401

PUSH BUTTON SWITCH

LH, External EDC Control

1шт.

5

5180495

TOGGLE SWITCH

Raise Rear Lift

1шт.
