(55.050.050) - VAR - 759033 - AIR CONDITIONER, W/ SUPER ECO CAB, HARNESS, SENSOR, CAB

Запчасти Case IH FARMALL 90V (55.050.050) - VAR - 759033 - AIR CONDITIONER, W/ SUPER ECO CAB, HARNESS, SENSOR, CAB (55) - ELECTRICAL SYSTEMS

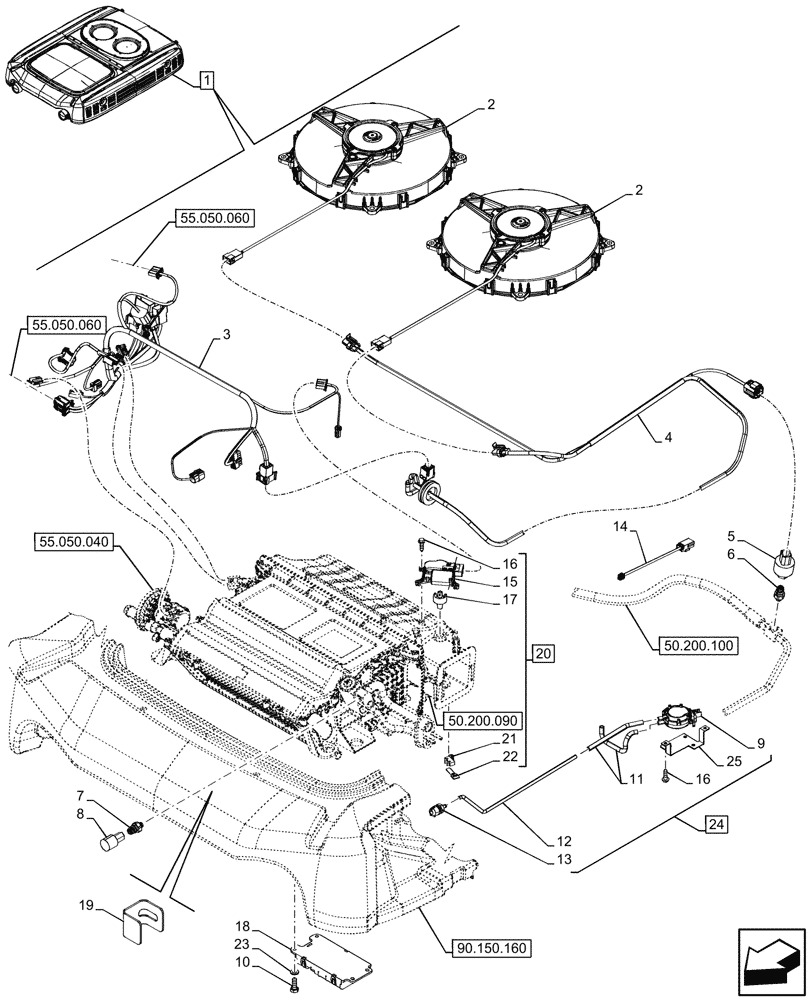

Схема запчастей Case IH FARMALL 90V - (55.050.050) - VAR - 759033 - AIR CONDITIONER, W/ SUPER ECO CAB, HARNESS, SENSOR, CAB (55) - ELECTRICAL SYSTEMS
55.050.040
8
2
22
24
17
7
14
15
3
20
9
25
5
21
16
16
23
2
11
18
4
6
1
19
13
10
12
55.050.060
55.050.060
50.200.090
90.150.160
50.200.100
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47978392

ROOF

ASSY, Incl 2 - 25

1шт.

See also Roof Components in Figure 50.100.050, 50.104.040, 50.200.090, 50.200.100, 55.050.040, 55.050.060, 55.404.220, 90.150.160

1шт.

2

48043808

BLOWER,12V

2шт.

3

48041347

WIRE HARNESS

HVAC

1шт.

4

48041348

WIRE HARNESS

Condenser

1шт.

5

47704739

SENSOR

Condenser Pressure

1шт.

6

47701685

VALVE

Pressure Connection

1шт.

7

47902920

SENSOR

Pressure Freon Connection

1шт.

8

47902919

SENSOR

Pressure Freon

1шт.

9

47704741

SENSOR

Pressure

1шт.

10

10444614

HEX SOC SCREW,Hex, M4 x 12mm, Cl 5.8

3шт.

11

47777076

HOSE

2шт.

12

48009353

SENSOR

1шт.

13

47783218

SOCKET

1шт.

14

48024245

WIRE HARNESS

1шт.

15

47902806

ACTUATOR

1шт.

16

15516401

SELF-TAP SCREW,Self Tap, Hex, M4 x 2.5 x 16mm

6шт.

17

47902804

ACTUATOR

1шт.

18

47783219

MODULE

1шт.

19

47980818

BRACKET

1шт.

20

47994906

CONVEYOR

ASSY, Incl 15, 16 (Q.ty 4), 17, 21, 22

1шт.

See also Conveyor Components in Figure 50.200.090

1шт.

21

47902807

SWITCH

1шт.

22

47902808

BRACKET

1шт.

23

48041407

WASHER,5.3mm ID x 10mm OD x 0.15mm Thk

3шт.

24

48009353

SENSOR

ASSY, Incl 9, 11-13, 16 (Q.ty 2), 25

1шт.

25

47799081

BRACKET

1шт.
