(55.050.040) - VAR - 759033 - AIR CONDITIONER, W/ SUPER ECO CAB, COMPONENTS, BLOWER, CAB

Запчасти Case IH FARMALL 90V (55.050.040) - VAR - 759033 - AIR CONDITIONER, W/ SUPER ECO CAB, COMPONENTS, BLOWER, CAB (55) - ELECTRICAL SYSTEMS

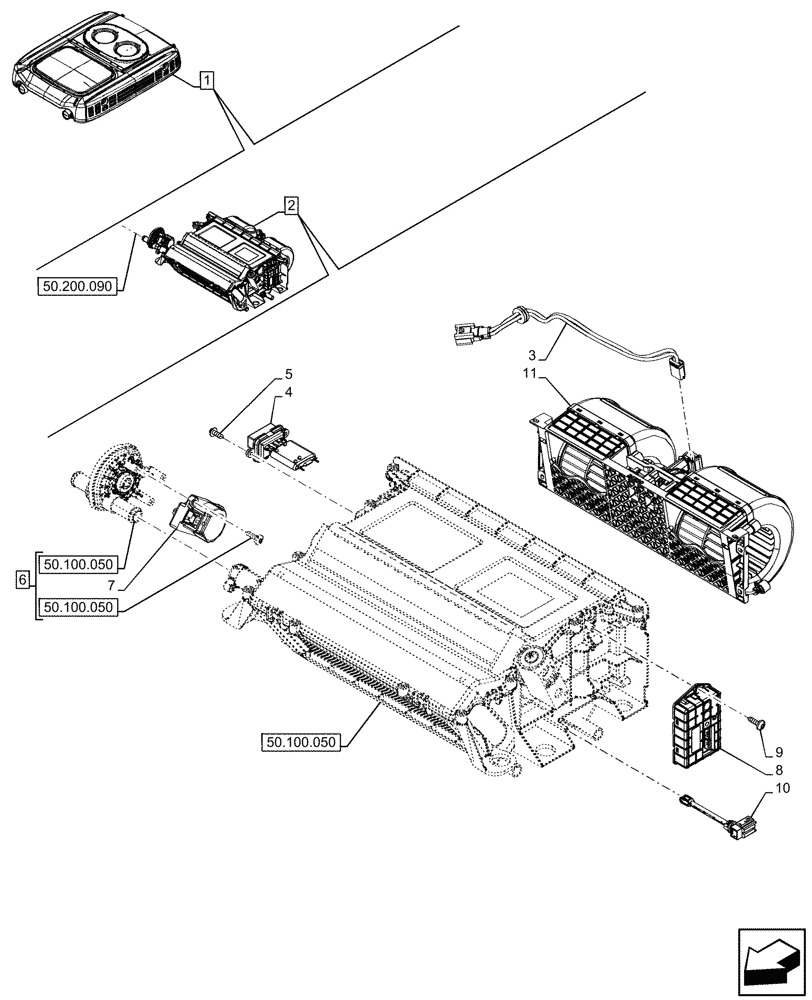

Схема запчастей Case IH FARMALL 90V - (55.050.040) - VAR - 759033 - AIR CONDITIONER, W/ SUPER ECO CAB, COMPONENTS, BLOWER, CAB (55) - ELECTRICAL SYSTEMS
50.200.090
1
11
4
7
9
8
10
5
6
3
2
50.100.050
50.100.050
50.100.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47978392

ROOF

ASSY, Incl 2 - 11

1шт.

See also Roof Components in Figure 50.100.050, 50.104.040, 50.200.090, 50.200.100, 55.050.050, 55.050.060, 55.404.220, 90.150.160

1шт.

2

48021596

CONDITIONING UNIT

ASSY, Incl 3 - 11

1шт.

See also HVAC Group Components in Figure 50.100.050

1шт.

3

47901276

WIRE HARNESS

Blower

1шт.

4

47901260

RESISTOR

1шт.

5

84582238

SCREW,M4 x 12mm

2шт.

6

47901347

VALVE

ASSY, Incl 7

1шт.

See also Valve Heater Control Components in Figure 50.100.050

1шт.

7

84601967

ELECTRIC MOTOR,12V

Heater

1шт.

8

47901153

DRIVER

1шт.

9

84602236

SCREW,M4 x 12mm L

2шт.

10

47901263

SENSOR

Temperature

1шт.

11

48021569

BLOWER,12V

1шт.
