(55.050.010) - VAR - 759031 - AIR CONDITIONER, W/ ECO CAB, COMPONENTS, BLOWER, CAB

Запчасти Case IH FARMALL 90V (55.050.010) - VAR - 759031 - AIR CONDITIONER, W/ ECO CAB, COMPONENTS, BLOWER, CAB (55) - ELECTRICAL SYSTEMS

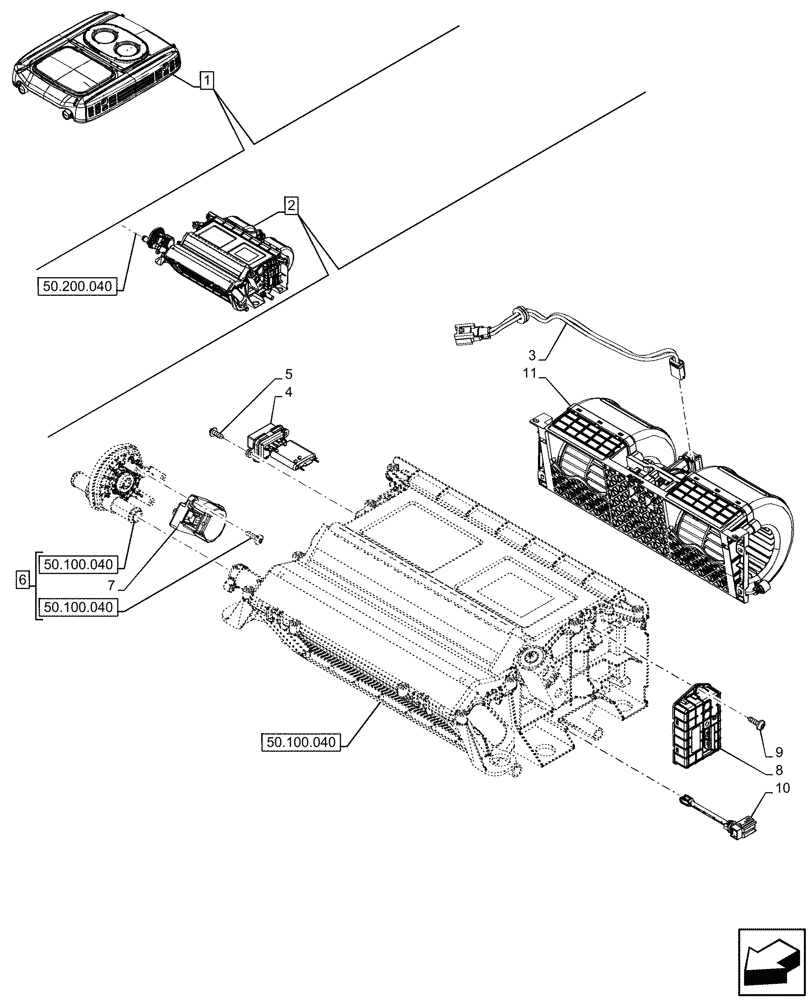

Схема запчастей Case IH FARMALL 90V - (55.050.010) - VAR - 759031 - AIR CONDITIONER, W/ ECO CAB, COMPONENTS, BLOWER, CAB (55) - ELECTRICAL SYSTEMS
50.200.040
8
3
11
6
5
9
10
2
1
4
7
50.100.040
50.100.040
50.100.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47988505

ROOF

ASSY, Incl 2 - 11

1шт.

See also Roof Components in Figure 50.100.040, 50.104.010, 50.200.040, 50.200.050, 55.050.020, 55.404.210, 90.150.140

1шт.

2

48021596

CONDITIONING UNIT

ASSY, Incl 3 - 11

1шт.

See also HVAC Group Components in Figure 50.100.040

1шт.

3

47901276

WIRE HARNESS

Blower

1шт.

4

47901260

RESISTOR

1шт.

5

84582238

SCREW,M4 x 12mm

2шт.

6

47901347

VALVE

ASSY, Incl 7

1шт.

See also Valve Heater Control Components in Figure 50.100.040

1шт.

7

84601967

ELECTRIC MOTOR,12V

1шт.

8

47901153

DRIVER

1шт.

9

84602236

SCREW,M4 x 12mm L

2шт.

10

47901263

SENSOR

1шт.

11

48021569

BLOWER,12V

1шт.
