(55.036.060) - VAR - 759021 - MID-MOUNT CONTROL VALVE, ELECTRICAL, HARNESS, SWITCH, CAB

Запчасти Case IH FARMALL 90V (55.036.060) - VAR - 759021 - MID-MOUNT CONTROL VALVE, ELECTRICAL, HARNESS, SWITCH, CAB (55) - ELECTRICAL SYSTEMS

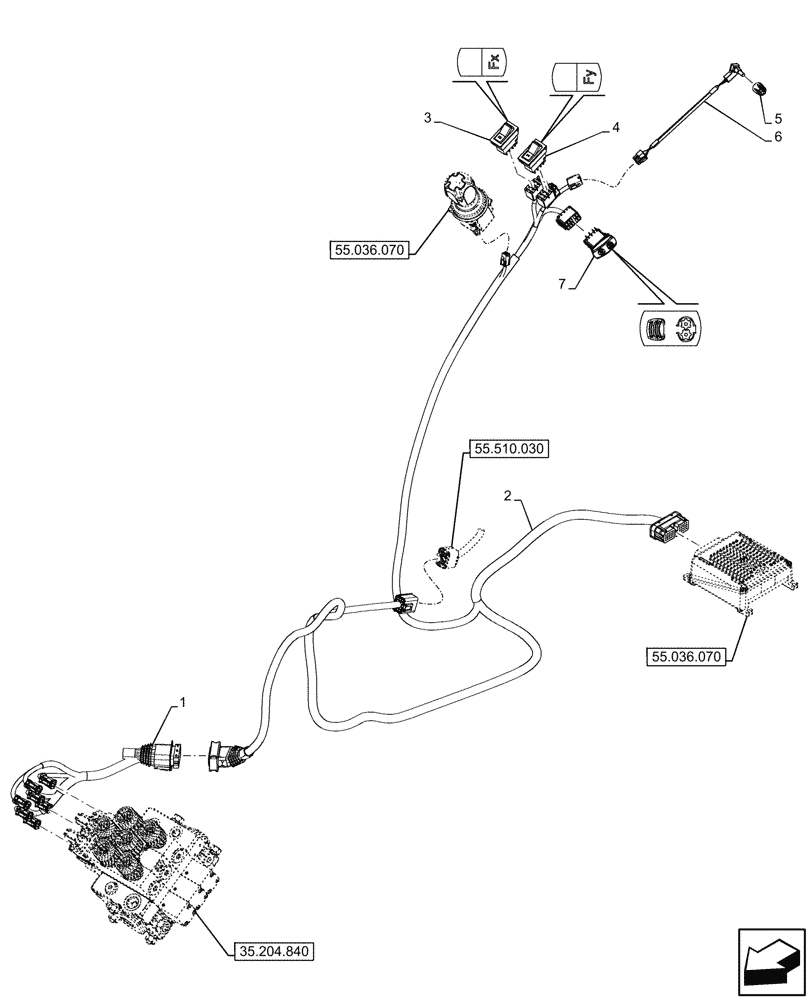

Схема запчастей Case IH FARMALL 90V - (55.036.060) - VAR - 759021 - MID-MOUNT CONTROL VALVE, ELECTRICAL, HARNESS, SWITCH, CAB (55) - ELECTRICAL SYSTEMS
55.510.030
1
2
4
7
3
6
5
55.036.070
55.036.070
35.204.840
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47866931

WIRE HARNESS

Mid Mouts Valve Harness

1шт.

2

47837137

WIRE HARNESS

Mid Mouts Harness

1шт.

3

47856224

ROCKER SWITCH

EHR X Stop

1шт.

4

47856225

ROCKER SWITCH

EHR Y Stop

1шт.

5

87584683

KNOB

1шт.

6

84213269

POTENTIOMETER

1шт.

7

84575851

SWITCH

Motor Enable

1шт.
