(55.036.040) - VAR - 743970 - MID-MOUNT CONTROL VALVE, ELECTRICAL, COMPONENTS, W/ HYDRAULIC STABILIZERS, CAB

Запчасти Case IH FARMALL 90V (55.036.040) - VAR - 743970 - MID-MOUNT CONTROL VALVE, ELECTRICAL, COMPONENTS, W/ HYDRAULIC STABILIZERS, CAB (55) - ELECTRICAL SYSTEMS

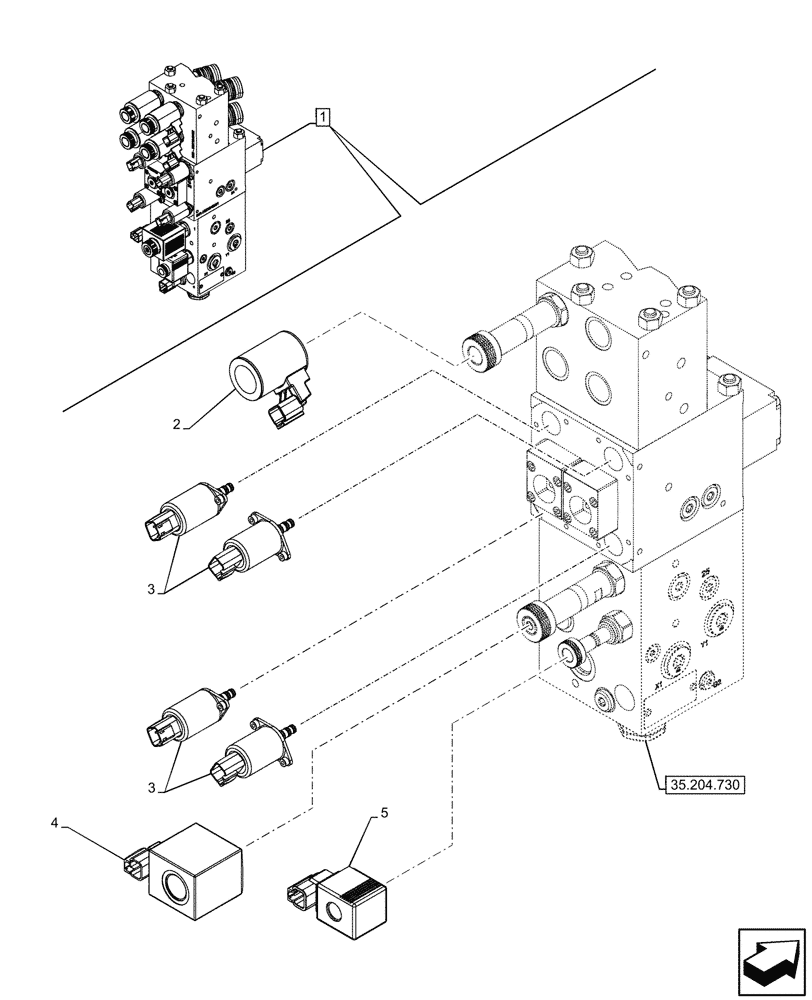

Схема запчастей Case IH FARMALL 90V - (55.036.040) - VAR - 743970 - MID-MOUNT CONTROL VALVE, ELECTRICAL, COMPONENTS, W/ HYDRAULIC STABILIZERS, CAB (55) - ELECTRICAL SYSTEMS
35.204.730
1
3
4
3
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47743675

CONTROL VALVE

ASSY, Incl 2 - 6

1шт.

See also Mid-Mount Components in Figure 36.204.730

1шт.

2

47464537

SOLENOID

4шт.

3

47464518

VALVE

4шт.

4

47464540

SOLENOID

1шт.

5

47464538

SOLENOID

1шт.
