Запчасти Case IH FARMALL 90V (55.024.020) - VAR - 341066, 342433 - TRANSMISSION, MAIN HARNESS, CAB (55) - ELECTRICAL SYSTEMS

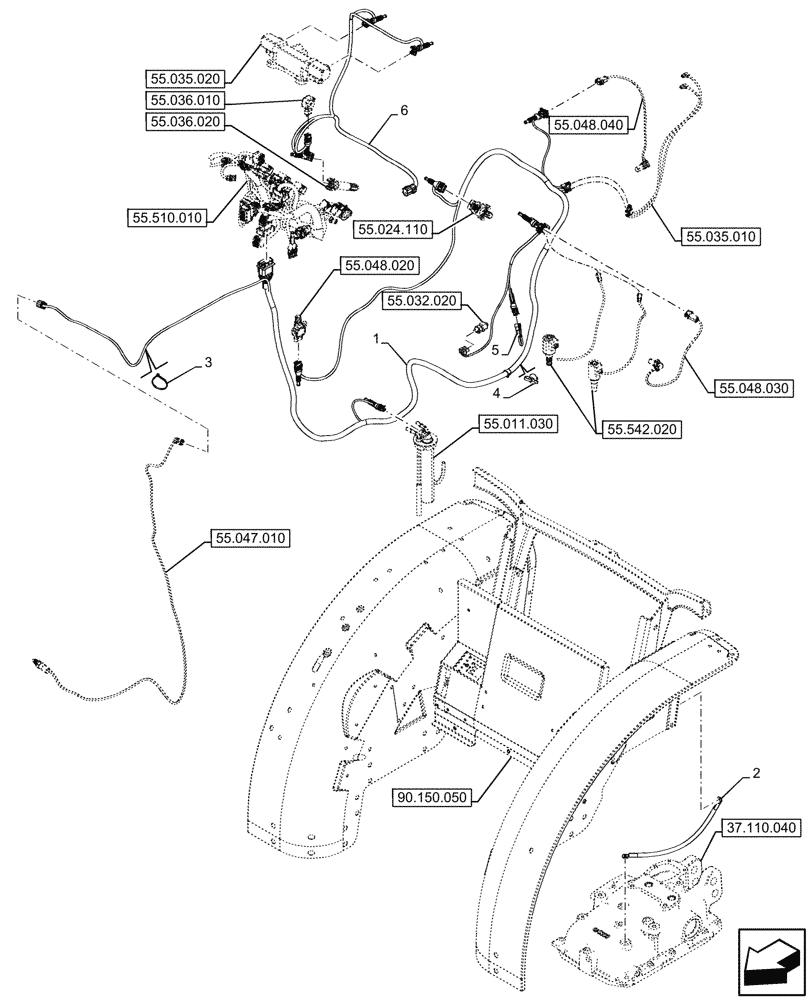

Схема запчастей Case IH FARMALL 90V - (55.024.020) - VAR - 341066, 342433 - TRANSMISSION, MAIN HARNESS, CAB (55) - ELECTRICAL SYSTEMS
55.048.020
55.032.020
5
2
1
4
6
3
55.542.020
55.510.010
55.035.010
55.048.030
55.036.010
55.048.040
55.011.030
55.036.020
37.110.040
90.150.050
55.024.110
55.035.020
55.047.010

Артикул

Название

Примечание

Количество

1

47930123

WIRE HARNESS

Transmission Harness

1шт.

2

47437891

GROUND CABLE

1шт.

3

14560187

COLLAR,199mm L

11шт.

4

82033028

CABLE TIE,170mm L

3шт.

5

47133777

BRIDGE

1шт.

6

47437980

WIRE HARNESS

EDC Harness

1шт.

Выбрано товаров: 6
