(55.015.020) - VAR - 759001, 759002 - ENGINE, WIRE HARNESS

Запчасти Case IH FARMALL 90V (55.015.020) - VAR - 759001, 759002 - ENGINE, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

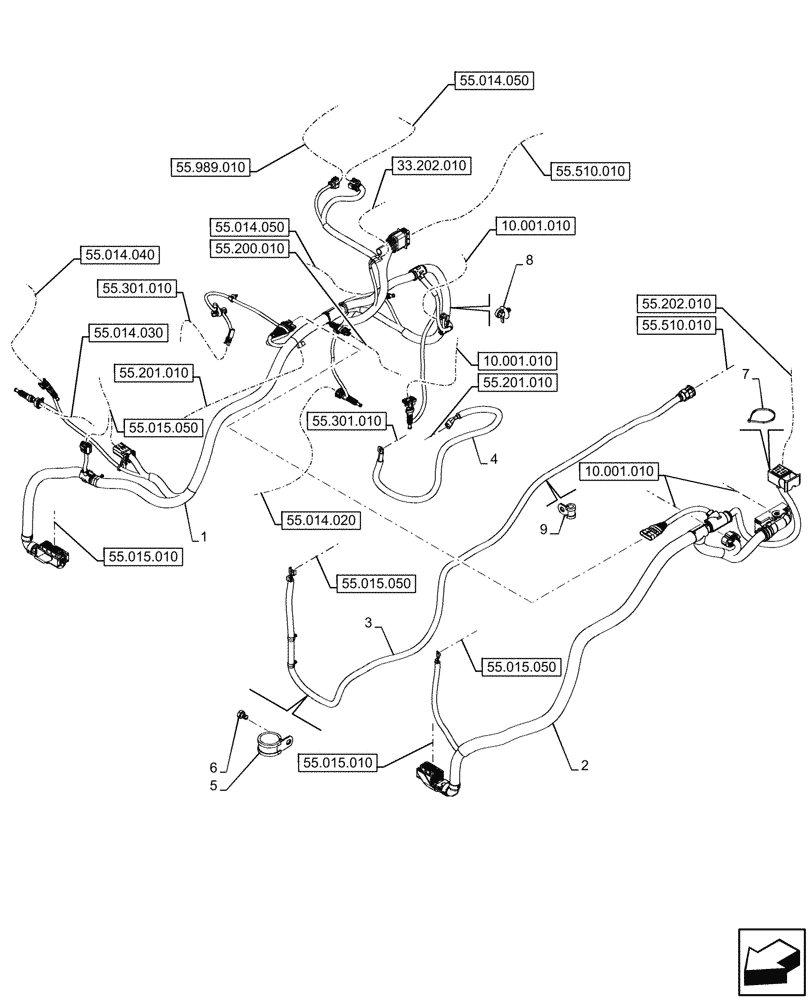

Схема запчастей Case IH FARMALL 90V - (55.015.020) - VAR - 759001, 759002 - ENGINE, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.014.020
6
9
55.200.010
5
2
4
1
7
3
8
55.510.010
55.510.010
55.014.030
55.201.010
55.201.010
10.001.010
10.001.010
10.001.010
55.014.040
55.202.010
55.301.010
55.301.010
55.015.050
55.989.010
55.015.050
55.015.050
55.014.050
55.014.050
55.015.010
55.015.010
33.202.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47898813

WIRE HARNESS

Engine Harness TIER4

1шт.

2

47482643

WIRE HARNESS

Engine Harness TIER4A

1шт.

3

47498534

ELECTRIC CABLE

Cab Power Cable

1шт.

4

84549464

HARNESS

Starter Motor-Alternator, Positive

1шт.

5

10442090

RETAINER,26mm, Coat, P Type

2шт.

6

10979414

SCREW,Hex, M6 x 10mm, Cl 5.8

2шт.

7

14560187

COLLAR,199mm L

10шт.

8

82033028

CABLE TIE,170mm L

2шт.

9

10441190

CLAMP,8mm, Coat, 7mm Bolt Hole, P Type

1шт.
