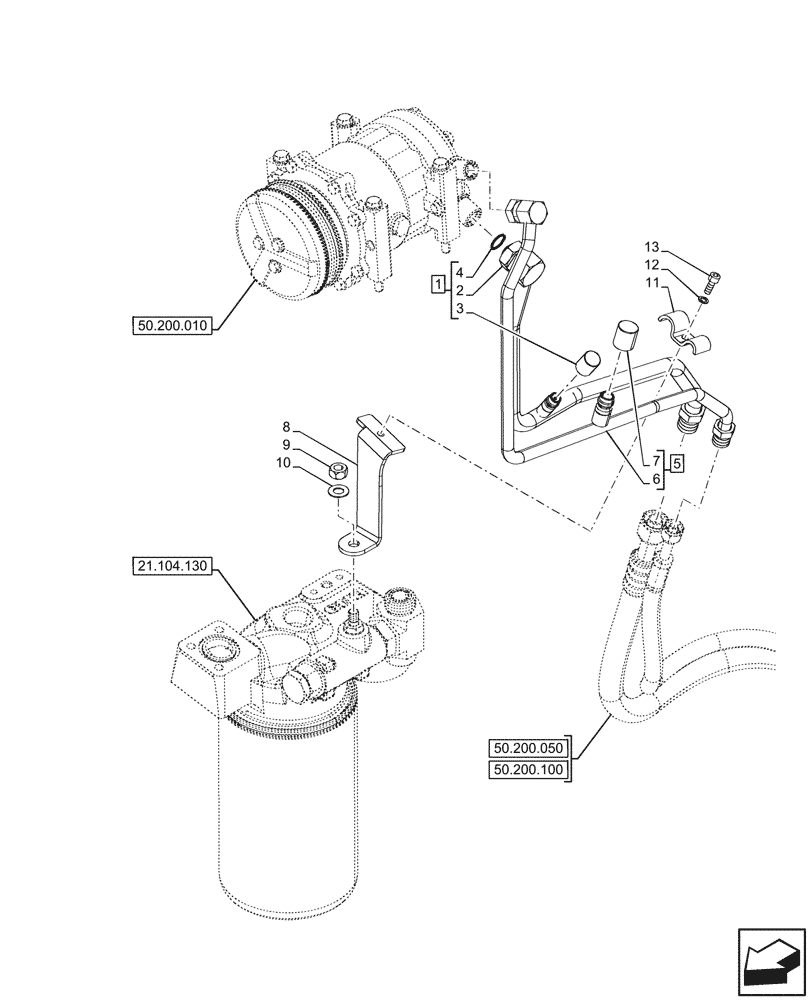

Запчасти Case IH FARMALL 90V (50.200.130) - VAR - 342264, 342265, 743524 - AIR CONDITIONING, W/ ECO CAB, LINE, CAB (50) - CAB CLIMATE CONTROL

1

47913579

PIPE

ASSY, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

2шт.

3

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

2шт.

4

452007C1

O-RING,29mm Thk x 12.7mm ID

2шт.

5

47913593

PIPE

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Pipe, Incl in 5

2шт.

7

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

2шт.

8

47918598

BRACKET

1шт.

9

84814894

NUT,M10 x 1, Cl 8.8

1шт.

10

12642421

WASHER,10.2mm ID x 20mm OD x 1mm Thk

1шт.

11

84359932

BRACKET

1шт.

12

12648278

WASHER,6.15mm ID x 10mm OD x 1mm Thk

1шт.

13

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

1шт.
