Запчасти Case IH FARMALL 90V (50.200.110) - VAR - 759033 - AIR CONDITIONING, W/ SUPER ECO CAB, DRAIN LINE, CAB (50) - CAB CLIMATE CONTROL

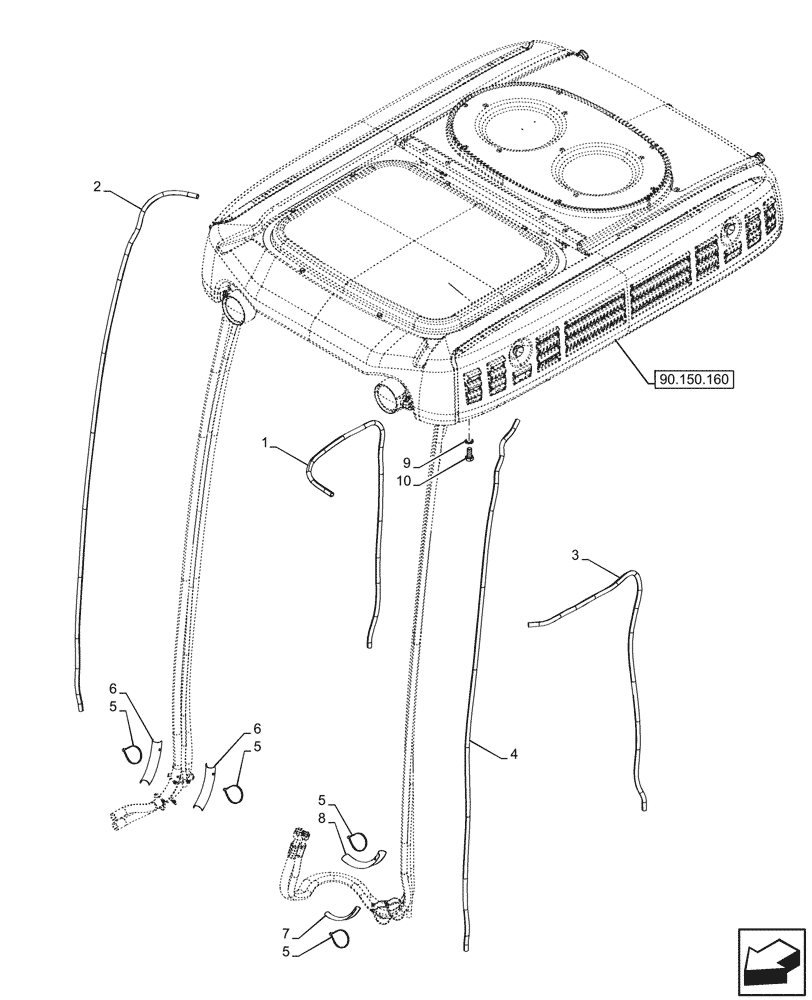

Схема запчастей Case IH FARMALL 90V - (50.200.110) - VAR - 759033 - AIR CONDITIONING, W/ SUPER ECO CAB, DRAIN LINE, CAB (50) - CAB CLIMATE CONTROL
90.150.160
4
2
8
5
6
1
5
10
6
3
5
9
7
5

Артикул

Название

Примечание

Количество

1

47918872

HOSE,9mm ID x 1120mm L

LH, 1185mm

1шт.

2

47918873

HOSE,9mm ID x 1643mm L

LH, 1675mm

1шт.

3

47918874

HOSE,9mm ID x 1155mm L

RH, 1227mm

1шт.

4

47918875

HOSE,9mm ID x 1724mm L

RH, 1794mm

1шт.

5

14560187

COLLAR,199mm L

8шт.

6

47918552

SHROUD

2шт.

7

47804968

SHIELD

1шт.

8

47804970

SHIELD

1шт.

9

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.

10

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 10
