Запчасти Case IH FARMALL 90V (50.200.020) - VAR - 759003 - A/C COMPRESSOR, BELT (50) - CAB CLIMATE CONTROL

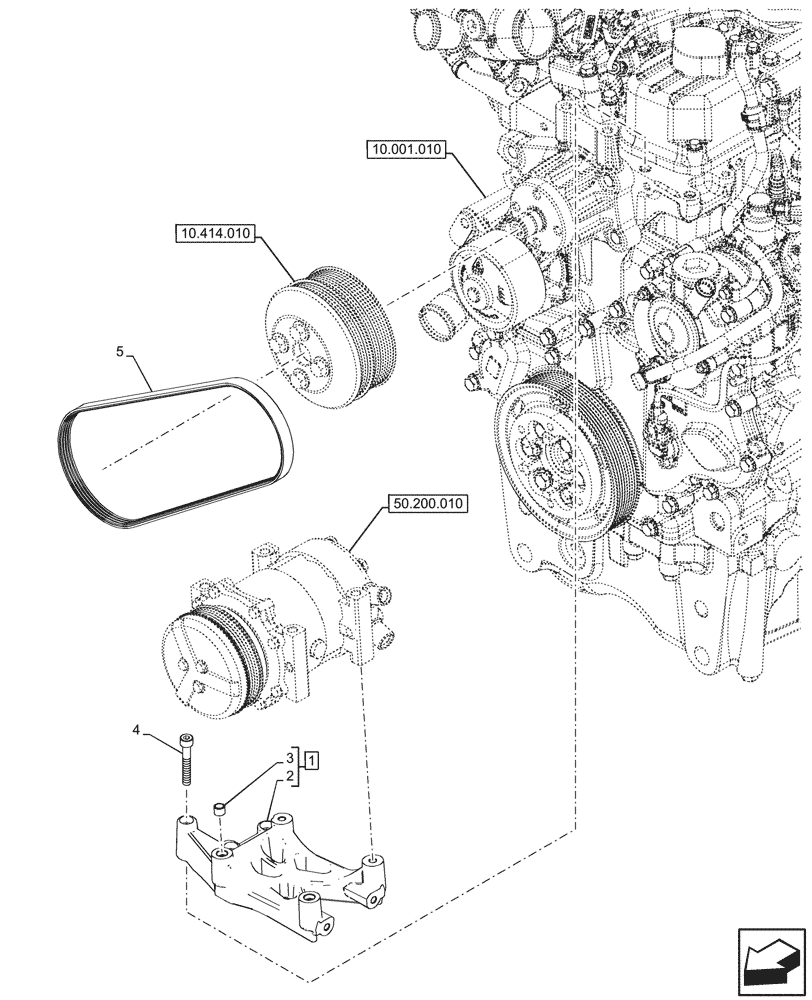

Схема запчастей Case IH FARMALL 90V - (50.200.020) - VAR - 759003 - A/C COMPRESSOR, BELT (50) - CAB CLIMATE CONTROL
10.414.010
4
3
1
2
5
50.200.010
10.001.010

Артикул

Название

Примечание

Количество

1

84317615

SUPPORT

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

3

87674545

BUSHING,8.5mm ID x 11.15mm OD x 9mm L

4шт.

4

14306924

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8

3шт.

5

84469820

BELT,14mm W x 884mm L, 4 Ribs

1шт.

Выбрано товаров: 5
