Запчасти Case IH FARMALL 90V (50.104.010) - VAR - 759031 - ROOF, W/ ECO CAB, AIR FILTER, CAB (50) - CAB CLIMATE CONTROL

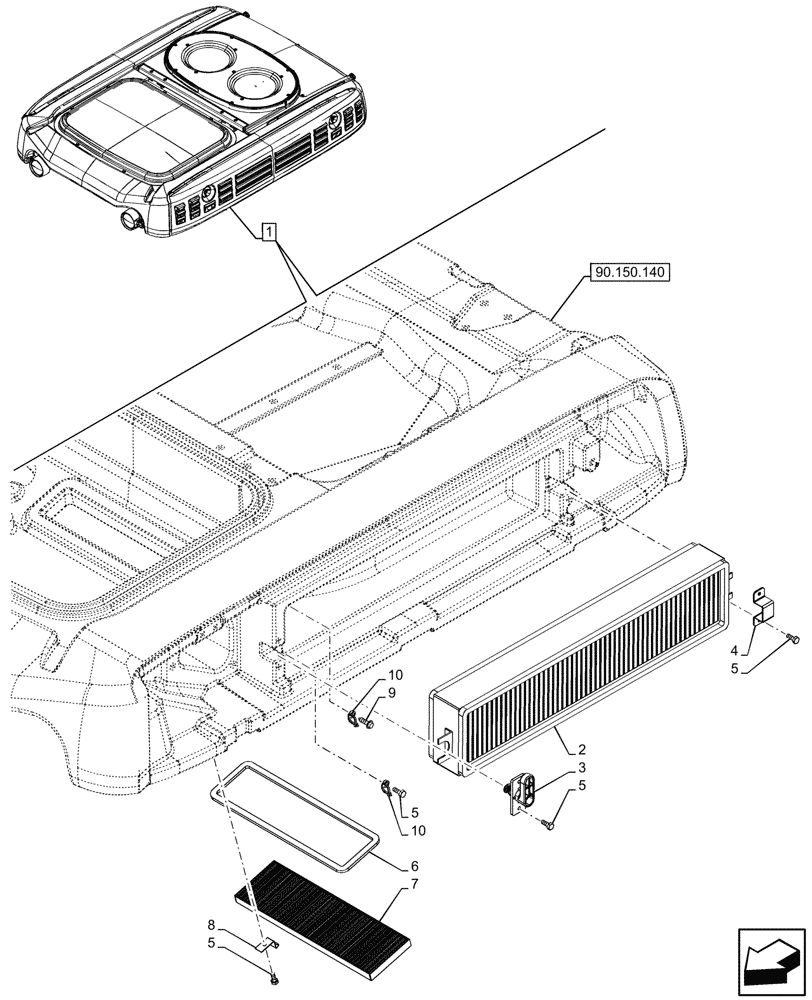

Схема запчастей Case IH FARMALL 90V - (50.104.010) - VAR - 759031 - ROOF, W/ ECO CAB, AIR FILTER, CAB (50) - CAB CLIMATE CONTROL
90.150.140
2
7
10
9
5
5
1
3
5
8
4
10
6
5

Артикул

Название

Примечание

Количество

1

47988505

ROOF

ASSY, Incl 2 - 10

1шт.

See also Roof Components in Figure 50.100.040, 50.200.040, 50.200.050, 55.050.010, 55.050.020, 55.404.210, 90.150.140

1шт.

2

47807838

CAB FILTER,624mm L x 134mm W x 83mm Thk, Cat 2

Air

1шт.

Cab Air Category 2 Every 1200 Hours or Annually

1шт.

3

47701690

LATCH

1шт.

4

47902847

BRACKET

1шт.

5

10444614

HEX SOC SCREW,Hex, M4 x 12mm, Cl 5.8

8шт.

6

47704876

GASKET,700mm L x 10mm W x 5mm Thk

1шт.

7

48009248

CAB FILTER

Recirculation Air

1шт.

8

48009345

CLIP,5mm ID x 14mm W x 37.3mm L

4шт.

9

15516401

SELF-TAP SCREW,Self Tap, Hex, M4 x 2.5 x 16mm

2шт.

10

48041363

STRAP

4шт.

Выбрано товаров: 12
