(50.100.020) - VAR - 759021 - HEATING SYSTEM, LINES, 80L/MIN, CAB

Запчасти Case IH FARMALL 90V (50.100.020) - VAR - 759021 - HEATING SYSTEM, LINES, 80L/MIN, CAB (50) - CAB CLIMATE CONTROL

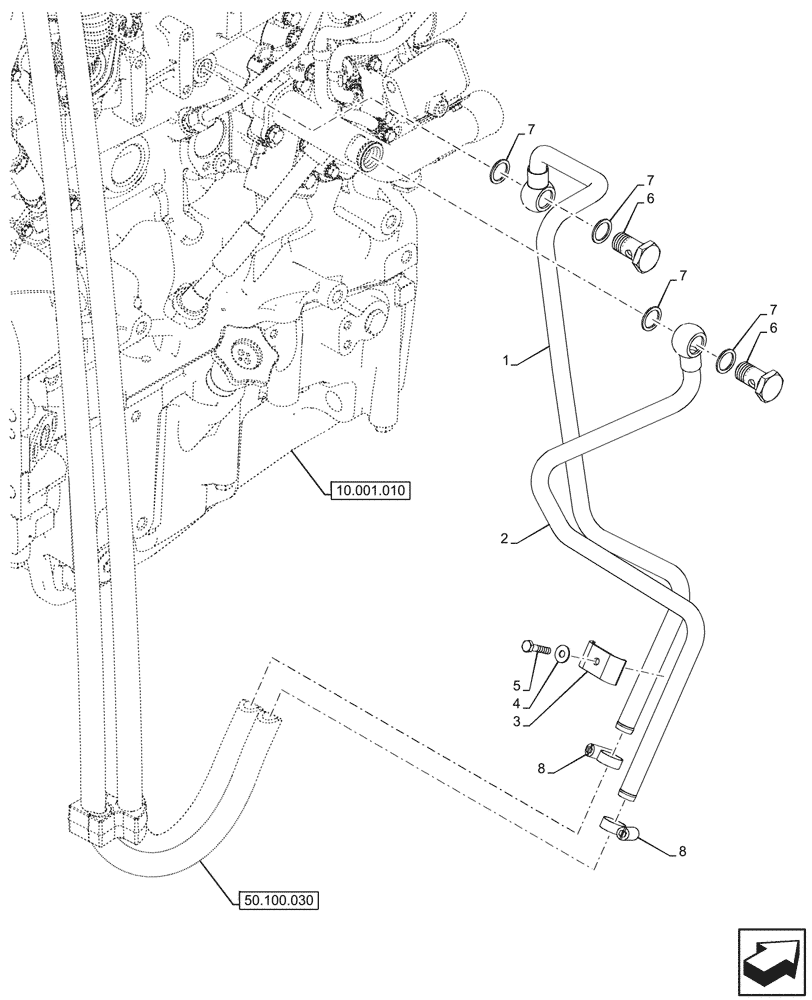

Схема запчастей Case IH FARMALL 90V - (50.100.020) - VAR - 759021 - HEATING SYSTEM, LINES, 80L/MIN, CAB (50) - CAB CLIMATE CONTROL
50.100.030
1
7
2
4
5
7
7
3
7
6
6
8
8
10.001.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48041955

PIPE

Heater Delivery Engine

1шт.

2

48022951

PIPE

Heater Return Engine

1шт.

3

87588821

BRACKET

1шт.

4

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

5

10902874

BOLT,Hex, M6 x 30mm, Cl 12.9

1шт.

6

5100984

BANJO BOLT,M18 x 1.5, 34mm L

2шт.

7

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

8

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

2шт.

Выбрано товаров: 8
