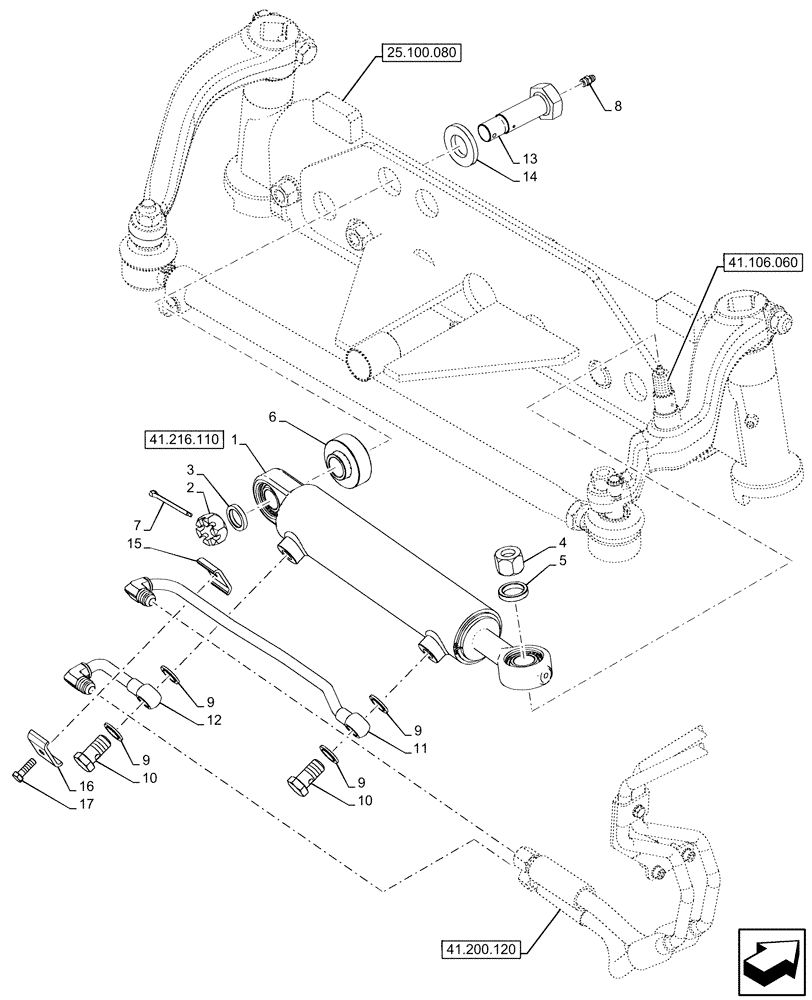

Запчасти Case IH FARMALL 90V (41.216.100) - VAR - 743515 - 2WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, STEERING CYLINDER, HYDR LINES (41) - STEERING

1

47135592

HYDRAULIC CYLINDER,Double Acting, 22mm Rod, 189mm Stroke

ASSY

1шт.

2

10724621

SLOTTED NUT,Hex, M18 x 1.5, R80 ZND

M18 x 1.5

1шт.

3

5168900

WASHER,18.2mm ID x 26mm OD x 4mm Thk

1шт.

4

12575911

NUT,M16 x 1.5, Cl 8

1шт.

5

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

1шт.

6

5184175

BUSHING,20mm ID x 27mm OD x 30mm L

1шт.

7

10734901

COTTER PIN,M4 x 40

1шт.

8

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

9

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

4шт.

10

10184311

BANJO BOLT,M14 x 1.5 x 27mm

2шт.

11

5189877

RIGID TUBE

for Left Steering

1шт.

12

47917653

PIPE

Cylinder Steering, LH

1шт.

13

5184174

PIN,20mm OD x 73mm L

1шт.

14

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

1шт.

15

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

1шт.

16

5193550

CLAMP,6.5mm ID

1шт.

17

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.
