Запчасти Case IH FARMALL 90V (35.204.520) - VAR - 759024 - REMOTE CONTROL VALVE, W/ DIVERTER, LEVER, CAB (35) - HYDRAULIC SYSTEMS

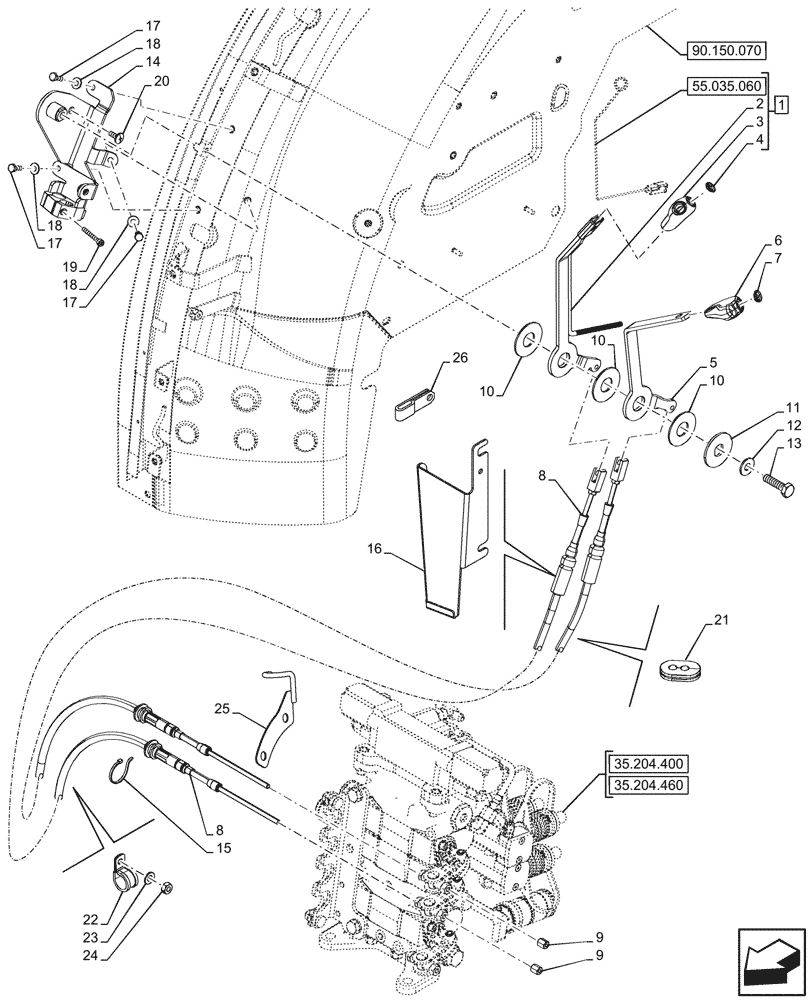

Схема запчастей Case IH FARMALL 90V - (35.204.520) - VAR - 759024 - REMOTE CONTROL VALVE, W/ DIVERTER, LEVER, CAB (35) - HYDRAULIC SYSTEMS
55.035.060
2
14
10
6
5
11
13
18
26
7
4
16
20
22
25
9
15
17
3
8
10
17
21
12
10
1
9
23
17
19
18
24
8
18
35.204.460
35.204.400
90.150.070

Артикул

Название

Примечание

Количество

1

47579859

LEVER

ASSY, Remote 2 W/ Diverter, Incl 2 - 4

1шт.

See also Lever Components in Figure 55.035.050

1шт.

2

84481975

LEVER

1шт.

3

47381080

KNOB,Black

W/ Diverter, Black

1шт.

4

87698506

DATA PLAQUE

Blue

1шт.

5

84481970

LEVER

Remote 1

1шт.

6

47381094

KNOB,Black

1шт.

7

87698505

DATA PLAQUE

Green

1шт.

8

47931821

REMOTE CONTROL

2шт.

9

10720114

NUT,Hex, M6 x 1

2шт.

10

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

11

5188905

WASHER,18mm ID x 50mm OD x 3 Thk

1шт.

12

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

13

5187364

BOLT,Hex, M10 x 1.25 x 22mm

1шт.

14

47893835

BRACKET

1шт.

15

14560087

CABLE TIE,103mm, Black

1шт.

16

48040608

BRACKET

1шт.

17

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

3шт.

18

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

3шт.

19

14358924

SCREW,Hex Soc Hd, M5 x 45, 8.8

1шт.

20

14778814

SCREW,Cross Rec Cheese Hd, M6 x 16mm, Cl 5.8

1шт.

21

84481972

GROMMET,2x12.8mm ID x 44mm L x 6mm Thk

1шт.

22

10115601

CLIP,10mm, Coat, P Type

1шт.

23

11190674

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD

1шт.

24

10791014

NUT,M10 x 1.25, Cl 04

1шт.

25

48033604

BRACKET

1шт.

26

5188267

COLLAR CLAMP,13mm ID x 20mm W

1шт.

Выбрано товаров: 27
