Запчасти Case IH FARMALL 90V (35.124.050) - VAR - 743536 - 3 POINT HITCH, CYLINDER, RH, LINE (35) - HYDRAULIC SYSTEMS

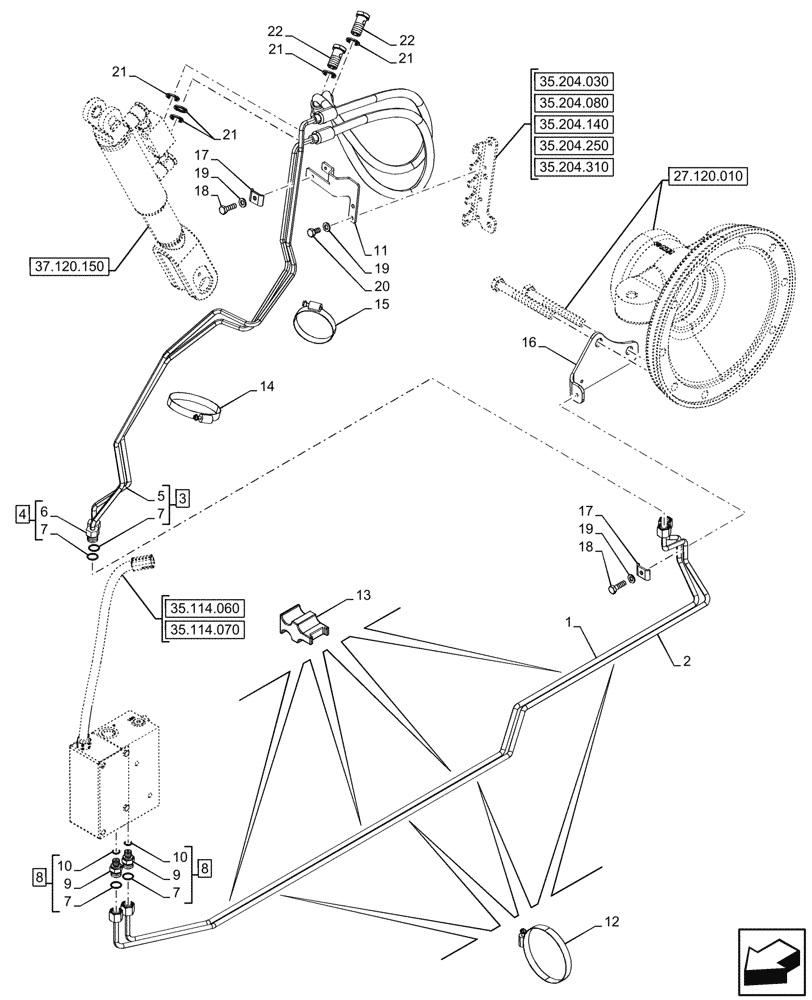

Схема запчастей Case IH FARMALL 90V - (35.124.050) - VAR - 743536 - 3 POINT HITCH, CYLINDER, RH, LINE (35) - HYDRAULIC SYSTEMS
35.204.310
3
22
22
10
8
8
7
5
19
18
10
14
16
1
7
21
4
18
20
6
7
15
19
11
9
12
7
9
13
17
17
2
19
21
21
21
35.114.060
37.120.150
35.204.080
35.204.030
27.120.010
35.204.140
35.204.250
35.114.070

Артикул

Название

Примечание

Количество

1

47689501

PIPE

Return from RH Cylinder

1шт.

2

47449726

PIPE

Return from RH Cylinder, Pipe

1шт.

3

47680909

PIPE

ASSY, Return from Hydraulic Tie Rod, RH, Incl 5, 7 (Qty 1)

1шт.

4

47680891

PIPE

ASSY, Return from Hydraulic Tie Rod, RH, Incl 6, 7 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Pipe, Incl in 3

1шт.

6

NSS

NOT SOLD SEPARAT

Pipe, Incl in 4

1шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

8

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 9 (Qty 1), 10 (Qty 1), 11 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

10

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

11

47928099

BRACKET

1шт.

12

9706924

HOSE CLAMP,103.1mm - 127mm

4шт.

13

87479465

SPACER,4-R4, 25mm L x 13mm L

4шт.

14

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

15

87040758

HOSE CLAMP,71.4mm - 95.2mm

1шт.

16

47531707

BRACKET

1шт.

17

5161207

RETAINER COLLAR,7mm ID x 23mm L

2шт.

18

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

19

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

3шт.

20

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

1шт.

21

84185636

SEAL,14.76mm ID x 23.8mm OD x 3mm Thk

5шт.

22

5179496

BANJO BOLT,Hex, M9 x 39mm

2шт.

Выбрано товаров: 22
