Запчасти Case IH FARMALL 90V (33.220.040) - VAR - 743516 - TRAILER BRAKE VALVE, LINE, CAB (33) - BRAKES & CONTROLS

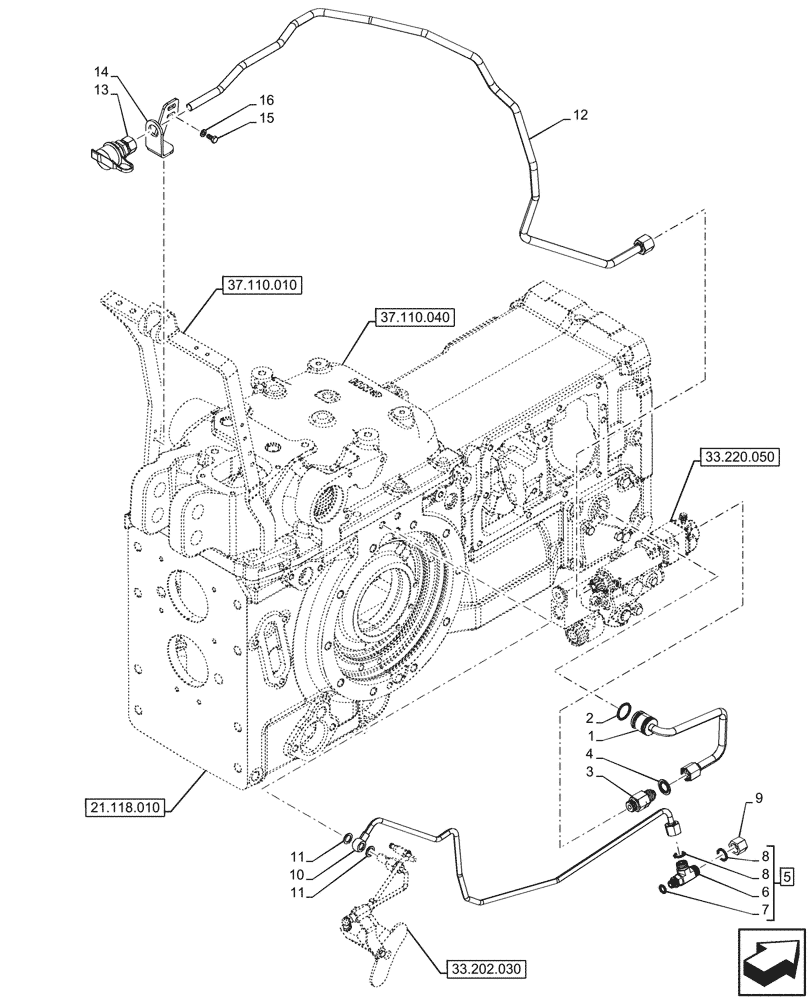

Схема запчастей Case IH FARMALL 90V - (33.220.040) - VAR - 743516 - TRAILER BRAKE VALVE, LINE, CAB (33) - BRAKES & CONTROLS
33.220.050
5
14
4
8
6
8
11
11
10
15
16
2
12
1
13
7
3
9
37.110.040
33.202.030
21.118.010
37.110.010

Артикул

Название

Примечание

Количество

1

47807094

PIPE,12mm OD

Return TBV, 12mm OD

1шт.

2

14463181

O-RING,921" ID x 0.139" Width

1шт.

3

5174654

SPACER,M18 x 1.5 NPT x 3/4" - 16

1шт.

4

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

5

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

ASSY, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Tee, Incl in 5

1шт.

7

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

8

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

2шт.

9

9625546

CAP,11/16" - 16 ORFS

1шт.

10

47807145

PIPE,8mm OD

Pilot TBV Dx, 8mm OD

1шт.

11

10298460

SEALING WASHER,M12.2 x 18 x 1.5

2шт.

12

47807188

PIPE,12mm OD

from TBV to Union, 12mm OD

1шт.

13

44015354

QUICK MALE COUPLING

1шт.

14

87596109

BRACKET

1шт.

15

10902114

BOLT,Hex, M6 x 14mm, Cl 5.8, Full Thd

2шт.

16

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

Выбрано товаров: 16
