Запчасти Case IH FARMALL 90V (33.202.110) - VAR - 743524, 759011 - BRAKE FLUID, LINES, RIGHT HAND (33) - BRAKES & CONTROLS

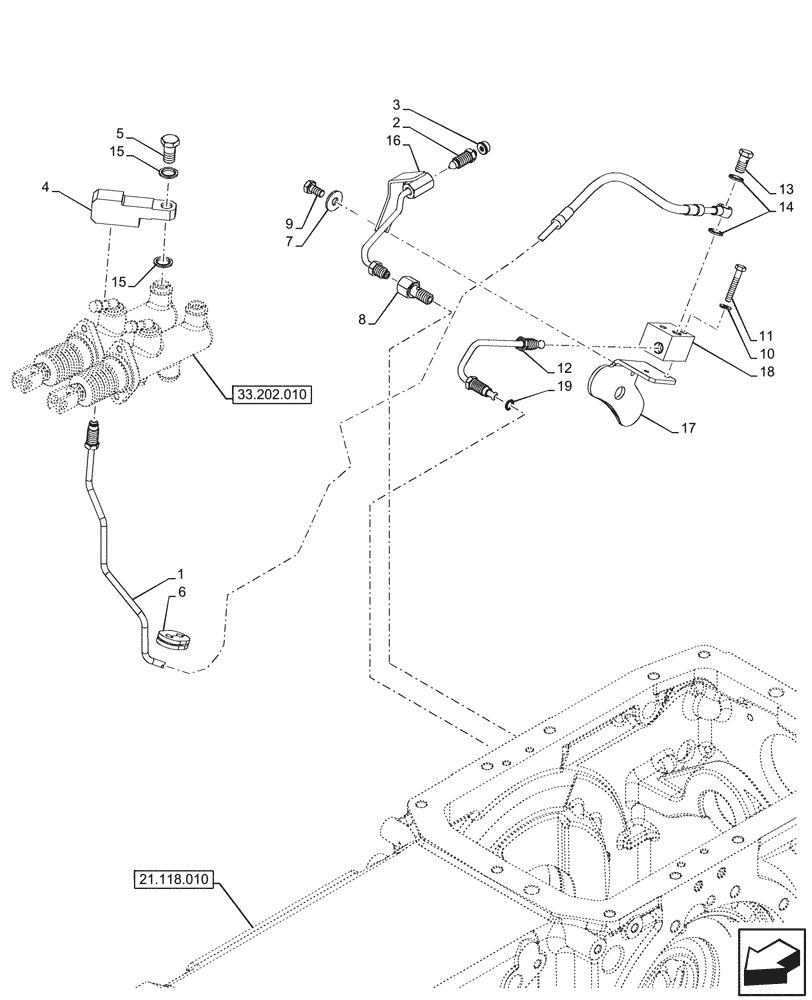

Схема запчастей Case IH FARMALL 90V - (33.202.110) - VAR - 743524, 759011 - BRAKE FLUID, LINES, RIGHT HAND (33) - BRAKES & CONTROLS
33.202.010
7
3
11
5
15
19
1
13
2
8
15
9
14
17
6
10
18
4
16
12
21.118.010

Артикул

Название

Примечание

Количество

1

48020867

PIPE

from Rh Brake Cylinder to Rear RH Block Connector

1шт.

2

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

1шт.

3

5171793

BOOT

1шт.

4

48020862

HYD CONNECTOR,M8/12 x 1.25 x 90mm L

1шт.

5

5155703

BANJO BOLT,M12 x 1.25 x 22mm

1шт.

6

87565323

GROMMET,2x8mm ID x 38mm L x 10mm Thk

1шт.

7

11194874

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.6mm Thk

1шт.

8

47774321

BANJO BOLT,M12 x 1.25 x 25mm

1шт.

9

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

10

13550201

WASHER,6.15mm ID x 13mm OD x 1mm Thk

2шт.

11

9815707

BOLT,Hex, M6 x 37mm, Cl 8.8

2шт.

12

84227326

PIPE

from Rear RH Block Connctor to Rear Transmission Housing

1шт.

13

11904111

BANJO BOLT,M10 x 1 x 19mm

1шт.

14

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

2шт.

15

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

16

47940388

PIPE

from Rear Transmission Housing to Rh Drain

1шт.

17

47769633

BRACKET

1шт.

18

84396342

BLOCK

1шт.

19

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.

Выбрано товаров: 19
