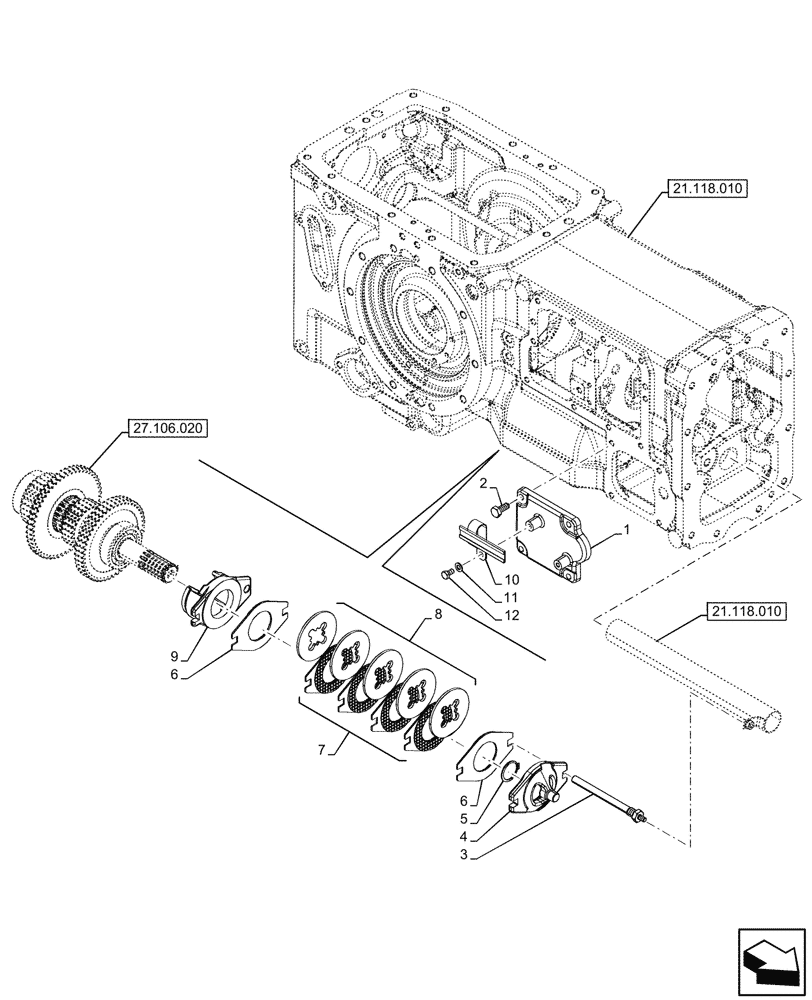

Запчасти Case IH FARMALL 90V (33.120.010) - VAR - 743572 - TRANSMISSION, BRAKE, W/ TRAILER BRAKE VALVE (33) - BRAKES & CONTROLS

1

47133655

COVER

1шт.

2

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

3

5185298

PIN,12mm OD x 148mm L

1шт.

4

47132170

SUPPORT

1шт.

5

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

6

5168216

SECTOR

2шт.

7

5168218

SECTOR

4шт.

8

5168219

BRAKE DISC,30mm ID x 35mm OD x 4mm Thk

5шт.

9

47132171

PLATE

1шт.

10

5145401

CLAMP

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

12

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.
