Запчасти Case IH FARMALL 90V (27.120.030) - VAR - 743507, 759008 - REAR AXLE, FINAL DRIVE, SPACER (27) - REAR AXLE SYSTEM

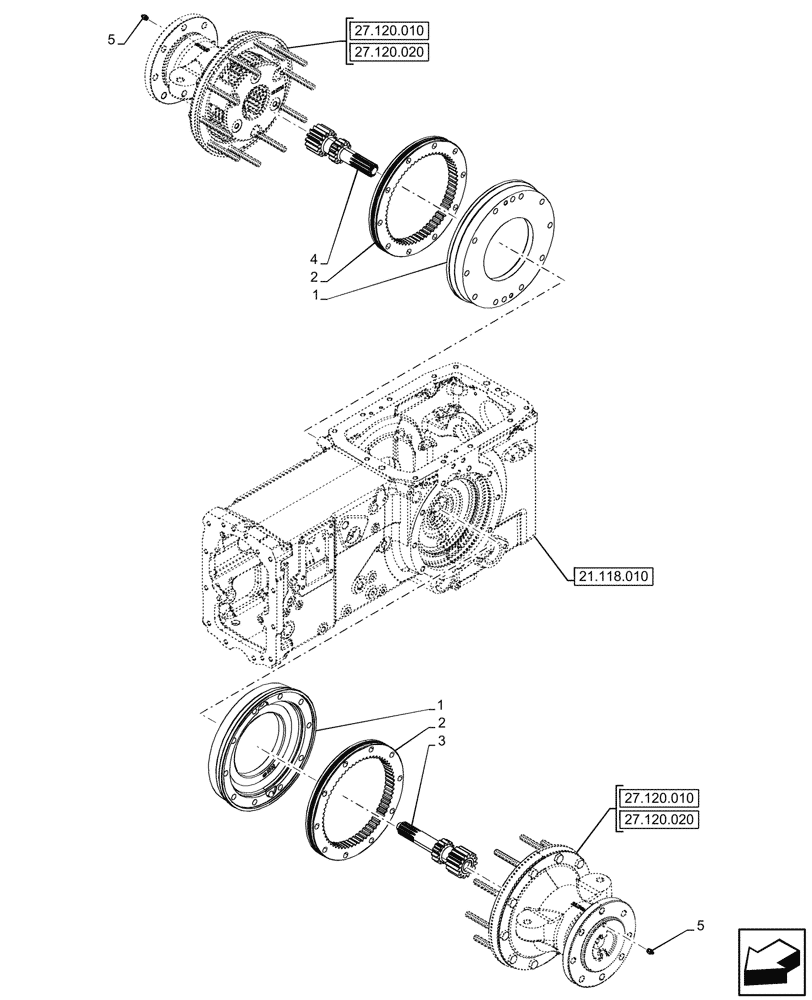

Схема запчастей Case IH FARMALL 90V - (27.120.030) - VAR - 743507, 759008 - REAR AXLE, FINAL DRIVE, SPACER (27) - REAR AXLE SYSTEM
27.120.020
5
4
2
1
5
3
1
2
21.118.010
27.120.010
27.120.010
27.120.020

Артикул

Название

Примечание

Количество

1

5172087

SPACER,175mm ID x 337mm OD x 53mm L

OD 337mm, ID 175mm, 53mm

2шт.

2

5168457

RING GEAR,244.1mm ID x 322mm OD x 27.5mm Tnk, 63T

OD 322mm, Z63

2шт.

3

5180635

HALF SHAFT,244.5mm

LH, 244.52mm, Z15, Z13, Z12

1шт.

4

5180634

HALF SHAFT,215.5mm

RH, 212.5mm, Z15, Z13, Z12

1шт.

5

13407211

LUBE NIPPLE,M10 x 1

2шт.

Выбрано товаров: 5
