Запчасти Case IH FARMALL 90V (18.104.060) - VAR - 759018 - PTO CLUTCH, CYLINDER, VALVE, W/O MID MOUNT VALVES (18) - CLUTCH

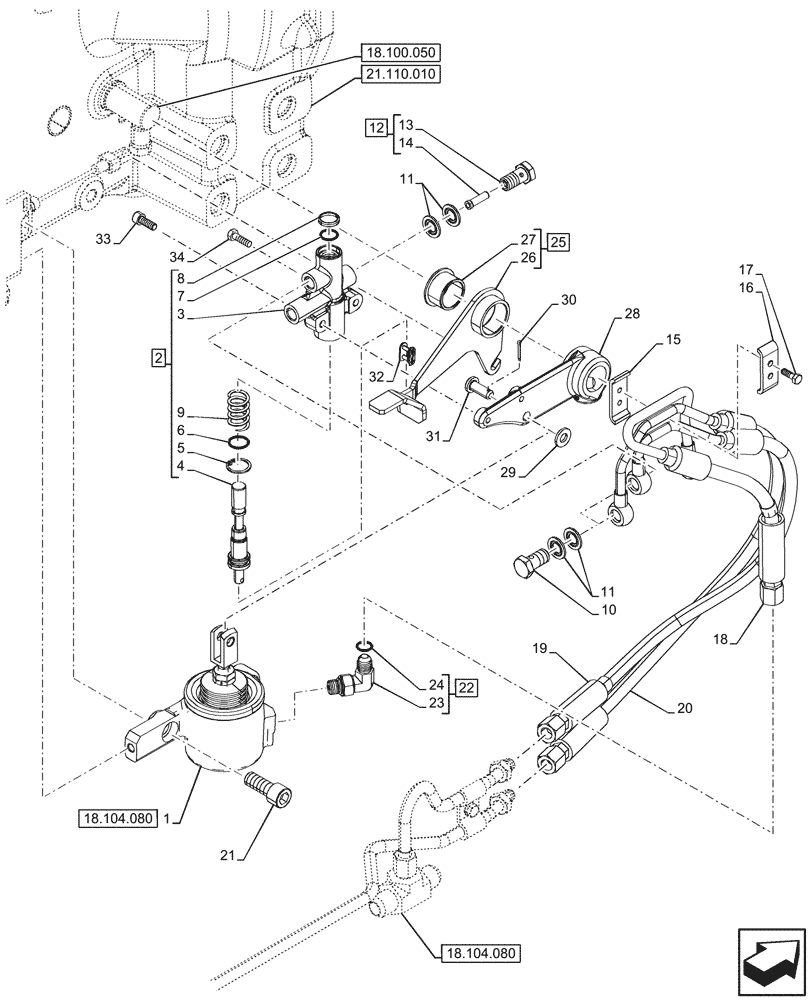

Схема запчастей Case IH FARMALL 90V - (18.104.060) - VAR - 759018 - PTO CLUTCH, CYLINDER, VALVE, W/O MID MOUNT VALVES (18) - CLUTCH
21.110.010
2
22
19
26
12
13
28
21
9
3
18
25
8
6
27
1
11
5
4
10
29
17
31
30
23
33
32
34
14
11
16
7
24
15
20
18.100.050
18.104.080
18.104.080

Артикул

Название

Примечание

Количество

1

84342333

CYLINDER

ASSY

1шт.

2

5185025

HYDRAULIC VALVE

ASSY, Incl 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

5

11057876

SNAP RING,M20, Int

1шт.

6

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

7

5192732

O-RING,11.91mm ID

1шт.

8

5114359

SCRAPER RING,Locking, 12mm ID x 18mm OD x 5mm Thk

1шт.

9

5188876

SPRING,Compression, 18.5mm OD x 30.5mm L

1шт.

10

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

11

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

6шт.

12

84196125

BANJO BOLT,Hex, M12 x 1.5

ASSY, Incl 13, 14

1шт.

13

84196124

HYD CONNECTOR,M12 x 1.5 x 29mm L

1шт.

14

47126655

FILTER STRAINER

1шт.

15

5184084

RETAINER COLLAR,2x5mm ID x 40mm L

1шт.

16

5184304

BRACKET

1шт.

17

10977811

SCREW,M5 x 15mm L

2шт.

18

5183774

FLEXIBLE HOSE,12.2mm ID x 232mm L

1шт.

19

47477411

PRESSURE PIPE

1шт.

20

47477465

PRESSURE PIPE

1шт.

21

14331121

HEX SOC SCREW,M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

22

87616449

HYD CONNECTOR

ASSY, Incl 23, 24

1шт.

23

87616447

HYD CONNECTOR,M12 x 1.5 x 31mm

1шт.

24

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

25

47763249

LEVER

ASSY, Incl 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

Lever, Incl in 25

1шт.

27

5185794

BUSHING,24.02mm ID x 29mm OD x 17mm L

1шт.

28

5183637

LEVER

1шт.

29

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

30

10734201

COTTER PIN,M2 x 12

1шт.

31

10050814

PIN,M8 x 22 L

1шт.

32

5185788

LINK,8.7mm Pitch

1шт.

33

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

1шт.

34

14305424

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 34
