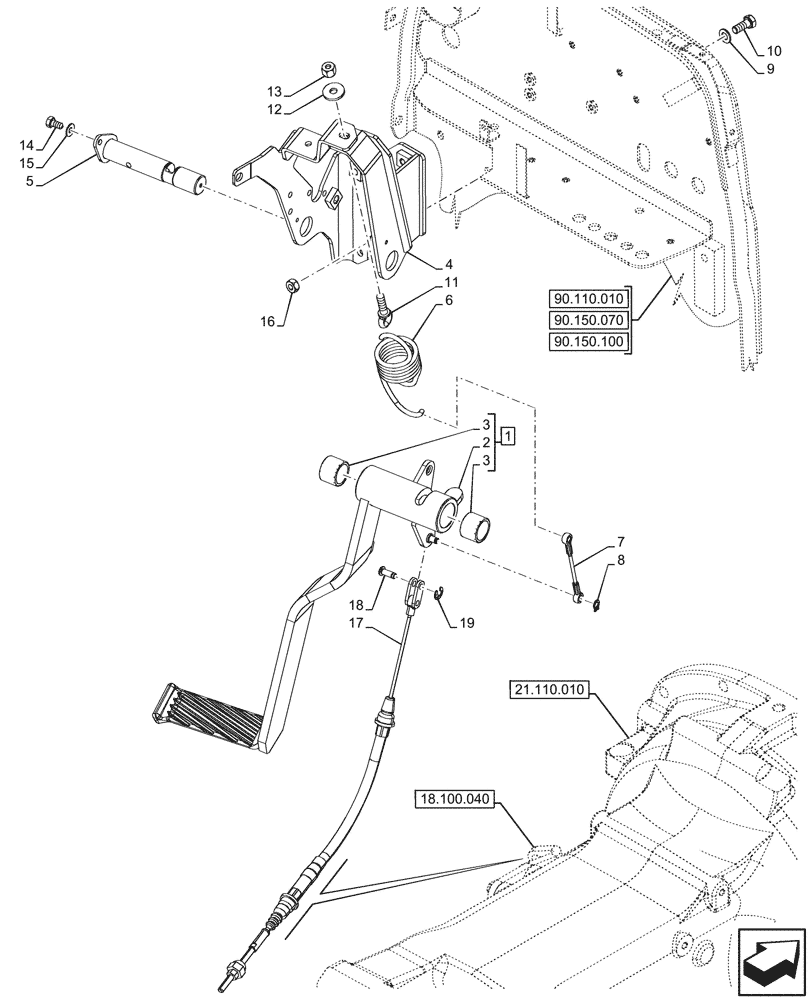

Запчасти Case IH FARMALL 90V (18.100.020) - VAR - 743381, 743508 - CLUTCH, PEDAL, FLEXIBLE CONTROL (18) - CLUTCH

1

47804621

PEDAL

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Pedal, Incl in 1

1шт.

3

84492852

NEEDLE BEARING,Needle, 22mm ID x 28mm OD

2шт.

4

84492861

SUPPORT

1шт.

5

84483505

PIN,22mm OD x 126mm L

1шт.

6

84483501

SPRING,Extension, 32 mm OD x 70mm L

70mm

1шт.

7

84483502

CABLE,90mm L

1шт.

8

11065476

SNAP RING,M6, Ext

1шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

10

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

11

5115351

HOOK,M6 x 1

1шт.

12

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

13

12574221

NUT,M6 x 1, Cl 10

1шт.

14

10977521

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

1шт.

15

12581379

WAVE WASHER,4.55mm ID x 11mm OD x 0.8mm Thk

1шт.

16

16100824

NUT,M8, Cl 10

1шт.

17

47803657

CABLE,M6 x 1 x 537mm L, Green

1шт.

18

4998010

PIN,10mm OD x 18.5mm L

2шт.

19

11087776

CIRCLIP,Ext., M6, BLO

2шт.
