(90.110.300) - VAR - 759012 - COVER, RH, W/O CAB

Запчасти Case IH FARMALL 90V (90.110.300) - VAR - 759012 - COVER, RH, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

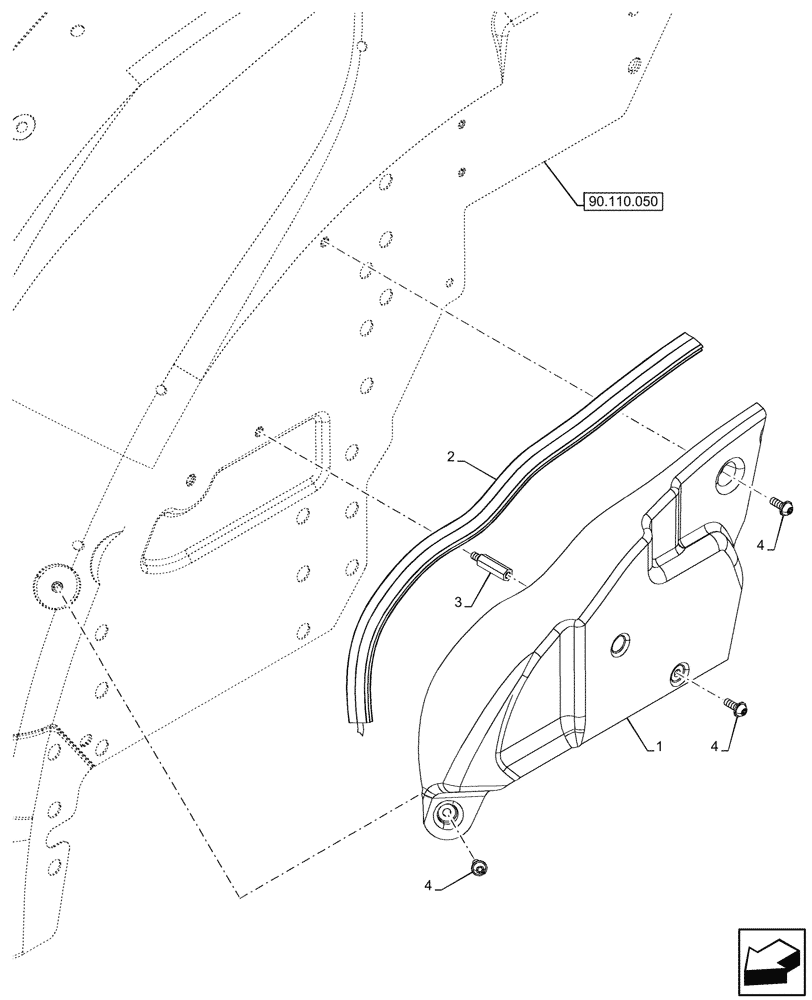

Схема запчастей Case IH FARMALL 90V - (90.110.300) - VAR - 759012 - COVER, RH, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.050
4
2
3
4
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47925280

COVER

Black

1шт.

2

47925402

RUBBER SEAL

470mm

1шт.

3

47721525

SPACER,Hex, M6 x 1 x 42mm L

1шт.

4

84349421

SCREW,Torx Rnd Wshr Hd, M6 x 16mm, Cl 8.8, Full Thd

3шт.
